YASKAWA SGDS-***12A Series User Manual

11 Appendix
11.1.3 Calculating the Required Capacity of Regenerative Resistors
11-10

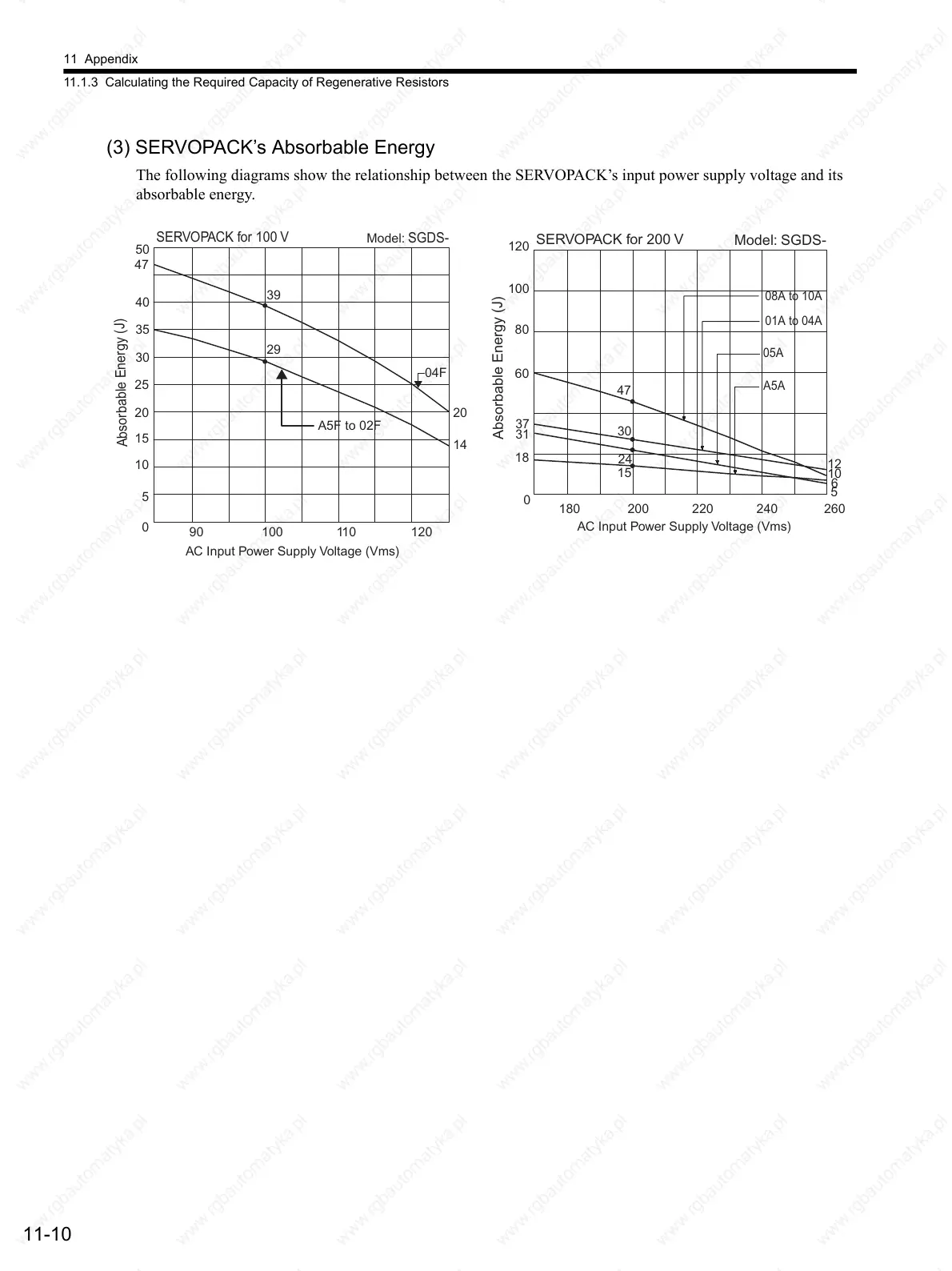

(3) SERVOPACK’s Absorbable Energy
The following diagrams show the relationship between the SERVOPACK’s input power supply voltage and its
absorbable energy.
A5F to 02F
AC Input Power Supply Voltage (Vms)
SERVOPACK for 100 V
Absorbable Energy (J)
04F
0
15
20
30
39
29
14
20
47
50
35
10
5
25
40
100 110 12090
Model: SGDS-
01A to 04A
08A to 10A
AC Input Power Supply Voltage (Vms)
SERVOPACK for 200 V
Absorbable Energy (J)
05A
A5A
0
5
6
10
12
18
31
37
15
24
30
47
100
120
60
80
200 220 240180 260
Model: SGDS-
