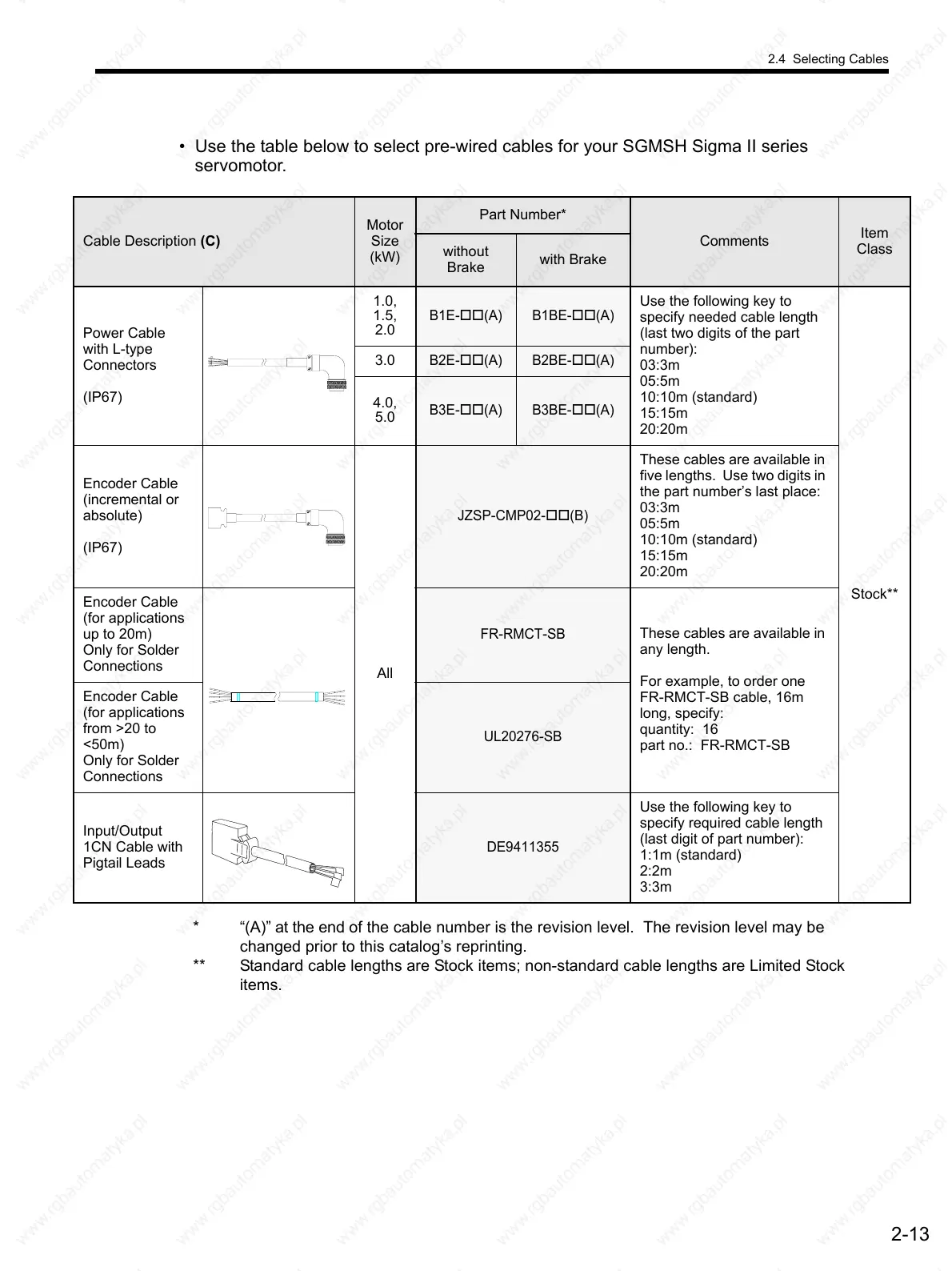

2.4 Selecting Cables
2-13
• Use the table below to select pre-wired cables for your SGMSH Sigma II series
servomotor.
* “(A)” at the end of the cable number is the revision level. The revision level may be
changed prior to this catalog’s reprinting.
** Standard cable lengths are Stock items; non-standard cable lengths are Limited Stock
items.
Cable Description (C)
Motor
Size
(kW)
Part Number*
Comments
Item
Class
without
Brake
with Brake
Power Cable
with L-type
Connectors
(IP67)
1.0,
1.5,
2.0
B1E-
(A) B1BE-
(A)
Use the following key to
specify needed cable length
(last two digits of the part
number):
03:3m
05:5m
10:10m (standard)
15:15m
20:20m
Stock**
3.0
B2E-
(A) B2BE-
(A)
4.0,
5.0
B3E-
(A) B3BE-
(A)
Encoder Cable
(incremental or
absolute)
(IP67)
All
JZSP-CMP02-
(B)
These cables are available in
five lengths. Use two digits in
the part number’s last place:
03:3m
05:5m
10:10m (standard)
15:15m
20:20m
Encoder Cable
(for applications
up to 20m)
Only for Solder
Connections
FR-RMCT-SB
These cables are available in
any length.
For example, to order one
FR-RMCT-SB cable, 16m
long, specify:
quantity: 16
part no.: FR-RMCT-SB
Encoder Cable
(for applications
from >20 to
<50m)
Only for Solder
Connections
UL20276-SB
Input/Output
1CN Cable with
Pigtail Leads
DE9411355
Use the following key to
specify required cable length
(last digit of part number):
1:1m (standard)
2:2m
3:3m
To Next Page
