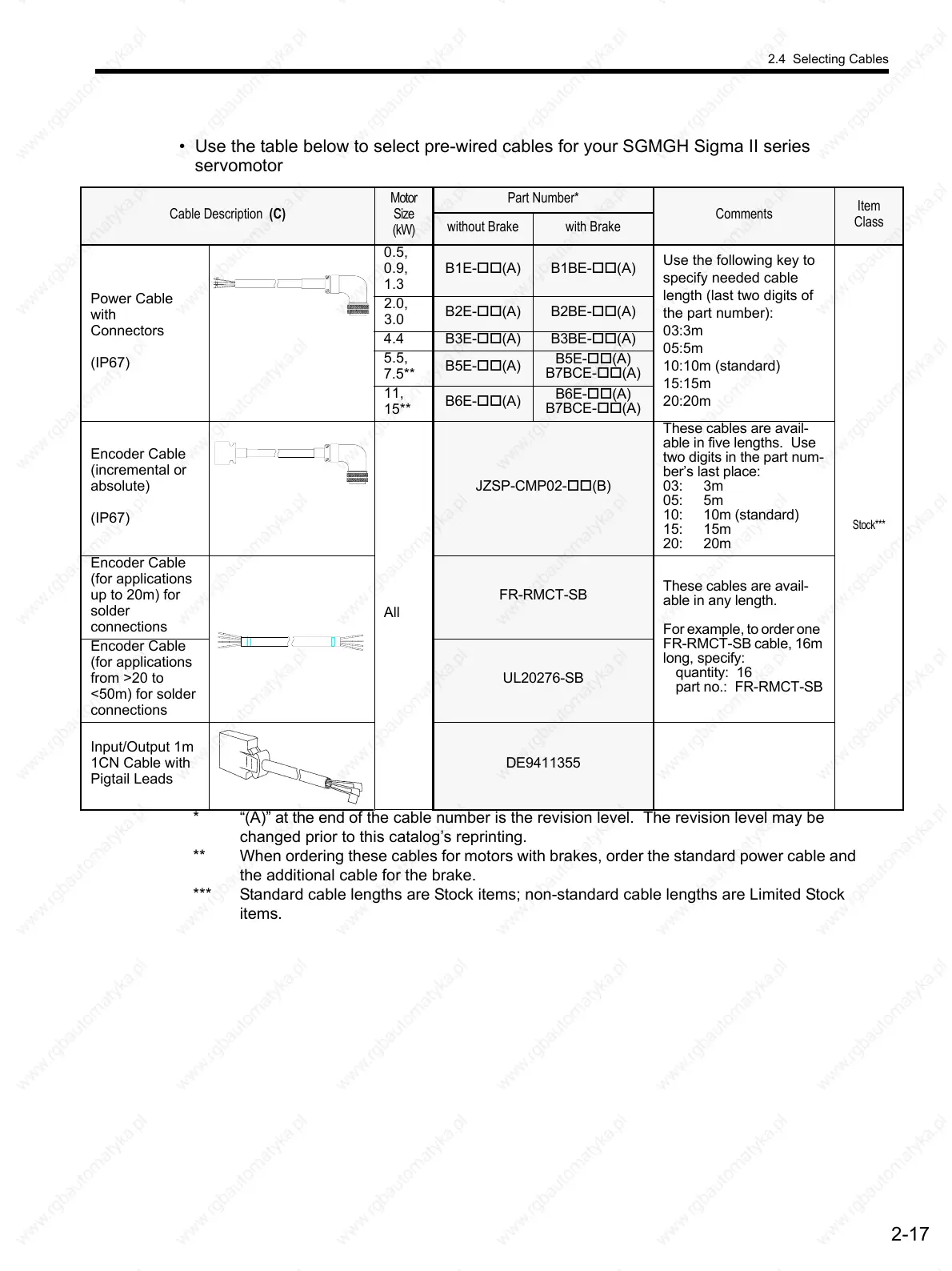

2.4 Selecting Cables
2-17
• Use the table below to select pre-wired cables for your SGMGH Sigma II series
servomotor
* “(A)” at the end of the cable number is the revision level. The revision level may be
changed prior to this catalog’s reprinting.
** When ordering these cables for motors with brakes, order the standard power cable and
the additional cable for the brake.
*** Standard cable lengths are Stock items; non-standard cable lengths are Limited Stock
items.
Cable Description (C)
Motor
Size
(kW)
Part Number*
Comments
Item
Class
without Brake with Brake
Power Cable
with
Connectors
(IP67)
0.5,
0.9,
1.3
B1E-(A) B1BE-(A)
Use the following key to
specify needed cable
length (last two digits of
the part number):
03:3m
05:5m
10:10m (standard)
15:15m
20:20m
Stock***
2.0,
3.0
B2E-(A) B2BE-(A)
4.4
B3E-(A) B3BE-(A)
5.5,
7.5**
B5E-(A)
B5E-(A)
B7BCE-(A)
11,
15**
B6E-(A)
B6E-(A)
B7BCE-(A)
Encoder Cable
(incremental or
absolute)
(IP67)
All
JZSP-CMP02-(B)
These cables are avail-
able in five lengths. Use
two digits in the part num-
ber’s last place:
03: 3m
05: 5m
10: 10m (standard)
15: 15m
20: 20m
Encoder Cable
(for applications
up to 20m) for
solder
connections
FR-RMCT-SB
These cables are avail-
able in any length.
For example, to order one
FR-RMCT-SB cable, 16m
long, specify:
quantity: 16
part no.: FR-RMCT-SB
Encoder Cable
(for applications
from >20 to
<50m) for solder
connections
UL20276-SB
Input/Output 1m
1CN Cable with
Pigtail Leads
DE9411355
