5-9
IM 04L20A01-01E
5
Operations on the Operation Screens

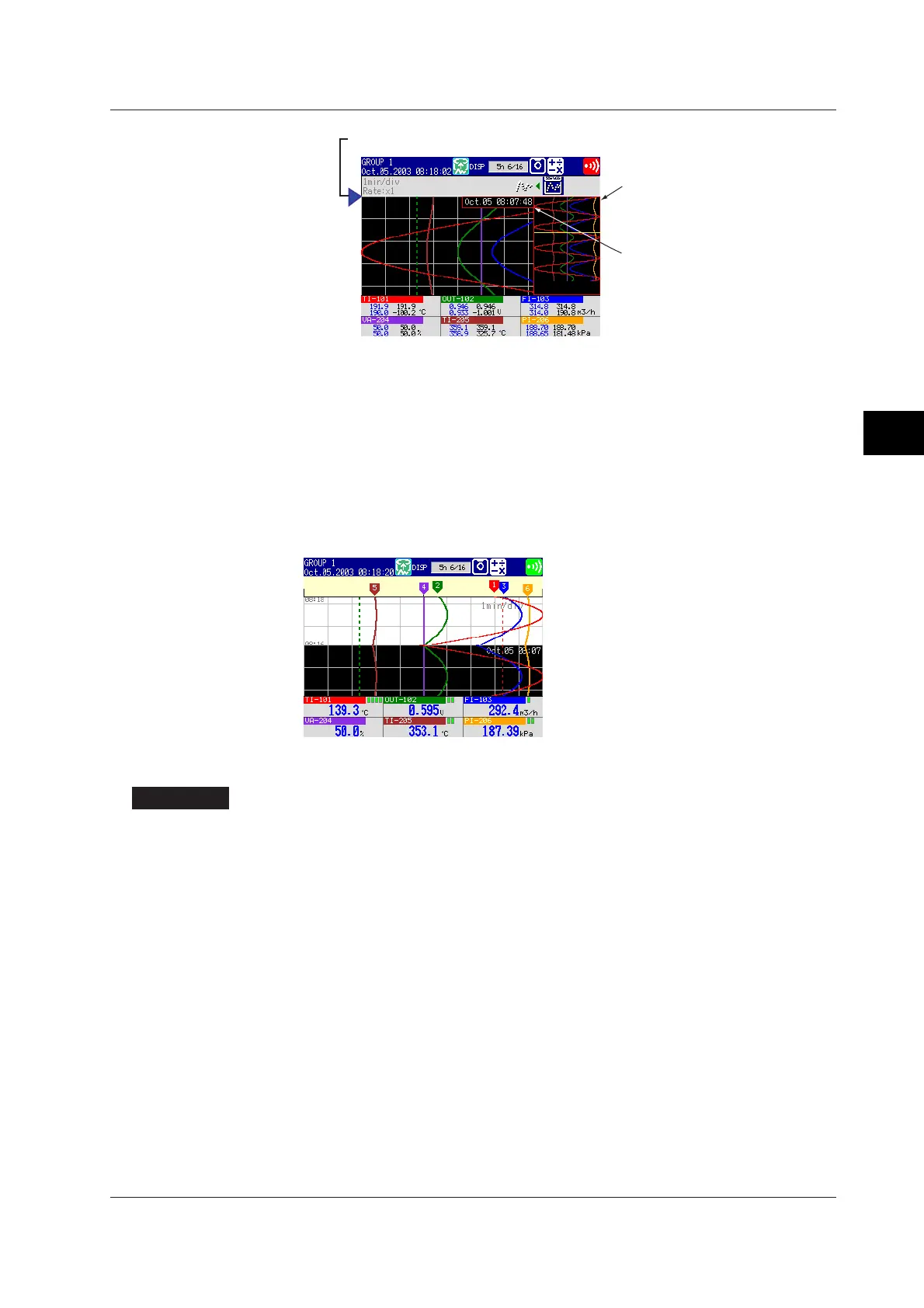

Cursor
Time at the cursor position
Display reference position
2. Move the cursor to select the displayed position using the up and down (left
and right) arrow keys.
3. Pressing the left (down) arrow key switches to the historical trend screen with
shifted waveforms.
The cursor position on the all data display locates the display reference position.
Displaying the Current Trend Data and the Historical Trend Data
This operation can be carried out while the display data is displayed on the historical
trend screen. Enclosed in parentheses are for the horizontal trend display.
Pressing the left (down) arrow key displays the current display data on the upper
(right) half of the screen and the historical trend on the lower (left) half of the screen.
To return to the previous screen, press the right (up) arrow key.
Explanation
Display Reference Position
The most recent data is located at the reference display position.
Expanding/Reducing the Time Axis
The time axis can be expanded or reduced with respect to the “display reference
position.”
Display data: 2 times the trend display to 1/60 minimum
Event data: Reduction only, up to 1/60 minimum
The minimum magnification and the factor by which the display can be expanded or
reduced with one operation vary depending on the display update rate for the display
data and on the sampling interval for the event data. To expand or reduce the display
further, repeat the procedures.
5.4 Displaying Measured Data Previously Acquired (Historical Trend)
