IM 04L20A01-01E
1-2

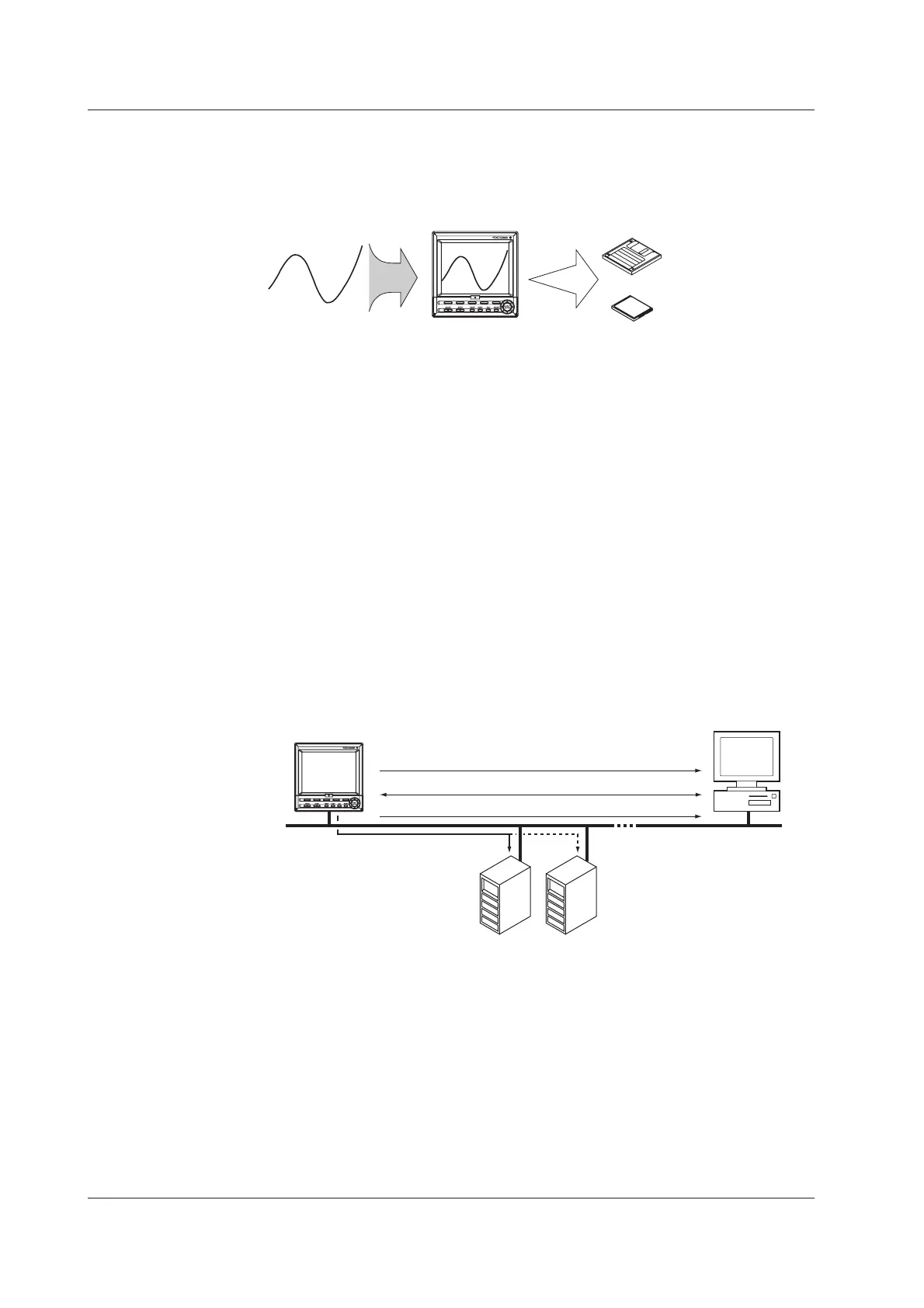

Saving Data
The measured data is acquired to the internal memory. The data in the internal memory
can also be saved to external storage media such as floppy disks (2HD) and compact
flash memory cards on models with a drive.
FX100
External Storage Medium
FD
CF memory card
The data that has been saved to an external storage medium can be displayed on a PC
using the DAQSTANDARD software that comes with the package. The data can also be
loaded into the FX100 to be displayed.
Communication Function
You can carry out the following types of operations by using the optional communication
functions (/C7, /C2, /C3).
• Operate the FX100.
• Configure the FX100.
• Monitor the measured data.
• Read the setup data or measured data from the FX100.
• Read files on the storage medium of the FX100.
You can also carry out the following types of operations by using the Ethernet
communication interface (/C7).
• Transmit the measured data in units of files to the FTP server on the network.
• Retrieve the files on the storage medium of the FX100 from a PC on the network.
• Display the screen of the FX100 on a Web browser on a PC.
• Transmit e-mail messages to preset recipients when events such as alarm
generations occur.
FX100
Transfers measured data files.
Transmits e-mail messages.
FTP server
Primary
Secondary
PC
Displays the screen of the FX100 on a Web browser.
Retrieves files on the external storage medium.
The communication functions using the Ethernet or serial interface are not covered in
this manual. See the ”
FX100 Communication Interface User’s Manual
” (IM 04L20A01-
17E).
DAQSTANDARD
By using the DAQSTANDARD that comes standard with the FX100, the following
operations are possible.
• Displaying the measured data
• Converting the measured data to ASCII, Lotus, or Excel formats
• Configuring the setup file for the FX100
See the “
DAQSTANDARD User’s Manual
” (IM 04L20A01-61E).
1.1 Overview of the FX100
To Next Page
