YOKOGAWA FX103 User Manual

IM 04L20A01-01E 1-35
1
Explanation of Functions

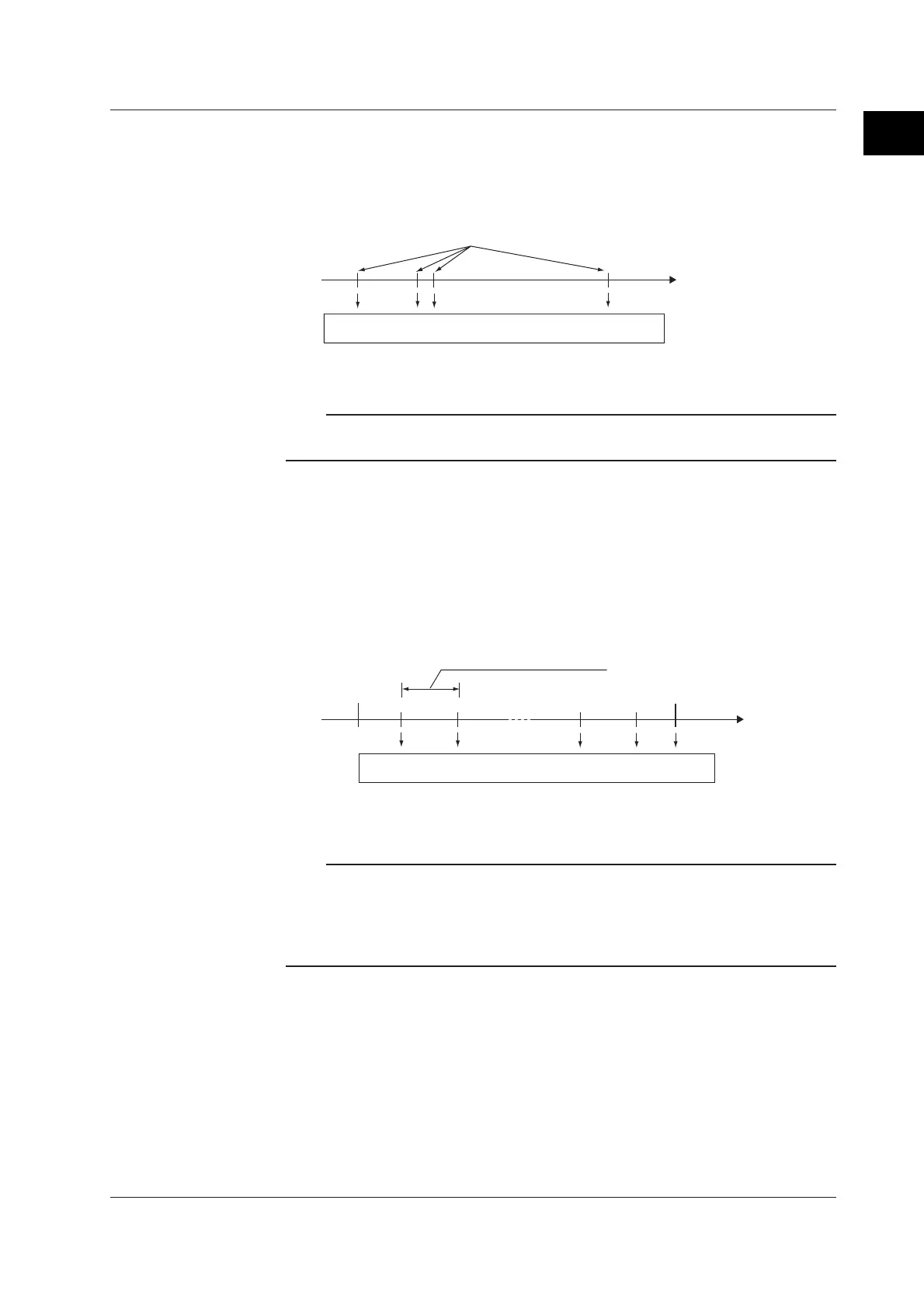

Acquiring Data to the Internal Memory (Other Data)
Manual Sampled Data
Every time a given key operation is carried out, all measured/computed data at that
point is acquired to the internal memory except for measurement channels that are
skipped and computation channels that are turned OFF.
Time
The measured/computed data of all channels are acquired to the
internal memory.
Manual sample operation is executed.
• Up to 50 data sets can be stored in the internal memory. When this number is
exceeded, data are overwritten from the oldest data.
Note
The number of manual sampled data in the internal memory can be confirmed with the
memory summary. See section 1.4 .
TLOG Data (/M1, /PM1 Option)
All the measured/computed data of all channels can be acquired to the internal
memory at the preset interval. However, this excludes measurement channels that
are skipped and computation channels that are turned OFF.
• TLOG data is acquired from the time the computation is started till the computation
is stopped.
• TLOG data is acquired at each time interval set by timers and when the
computation is stopped.
Time
Start
computation
T1
Stop
computation
T2
t1 t2 tn
tn+1
Interval time set by the timer
The measured/computed data of all channels are acquired to the
internal memory.
• Up to 400 data sets can be stored in the internal memory. When this number is
exceeded, data are overwritten from the oldest data.
Note
• Up to 16 blocks (number of computation start-and-stop operations) can be created in the
internal memory. When the number of blocks in the internal memory exceeds 16, TLOG data
is overwritten even if the number of data sets is less than 400.
• The number of TLOG data sets in the internal memory can be confirmed with the memory
summary. See section 1.4 .
1.5 Data Storage Function
