2-4
IM 04P03B01-01E

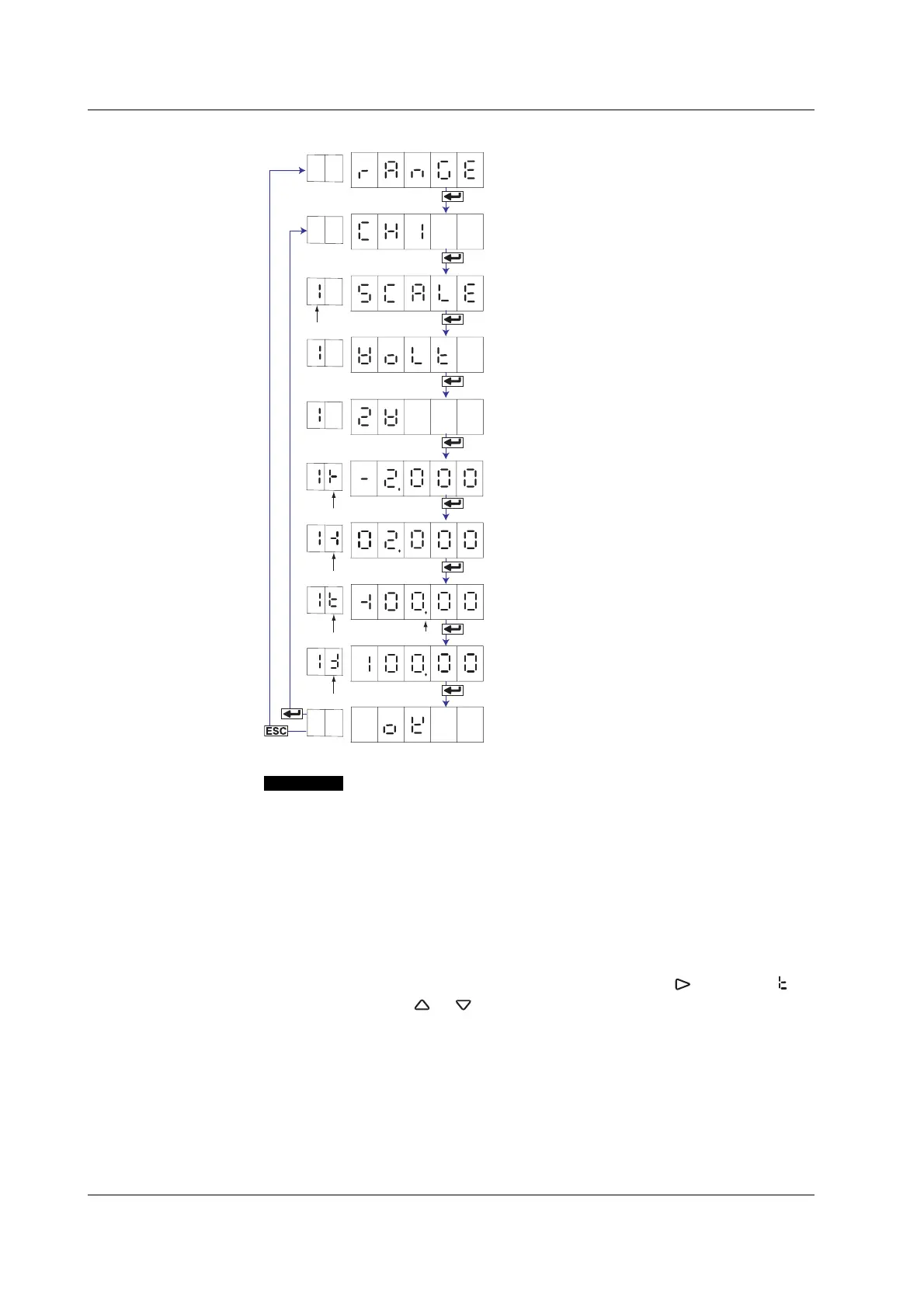

Linear Scaling
(RANGE)
(CH1)
(SCALE)
(VOLT)
(2V)
(OK)
Select “SCALE.”
Select the channel number.
Select the input type.
Select the range.
Set the left span value.
Set the right span value.
Select the left scale value and the decimal place.
Select the right scale value.
The settings are activated.
Select “RANGE.”
Channel number
Span left
Span right
Scale left
Scale right
Decimal point
Description
• Span Left and Span Right
Same as the selectable span range of the DC voltage, Thermocouple, and RTD
range.
• Scale Left, Scale Right, and Decimal Place
Selectable range (mantissa): –19999 to 30000
Example: The value in the range of –100.00 to 350.00 cannot be specified. The
mantissa of scale right is 35000, which exceeds the upper limit to 30000.
Set in the range of –100.0 to 350.0.
Decimal place: XXXXX, XXXX.X, XXX.XX, XX.XXX, X.XXXX
To set the decimal place for the left scale setup item, press the
key to make
blink, then press the or key.
The decimal position is the position specified by scale left.
<Related Topics> Setting the unit: Section 2.3
2.1 Setting the Input Range
To Next Page
