YOKOGAWA SR10000 series User Manual

2-5
IM 04P03B01-01E
Frequently Used Setup Operations (Setting Mode)
2

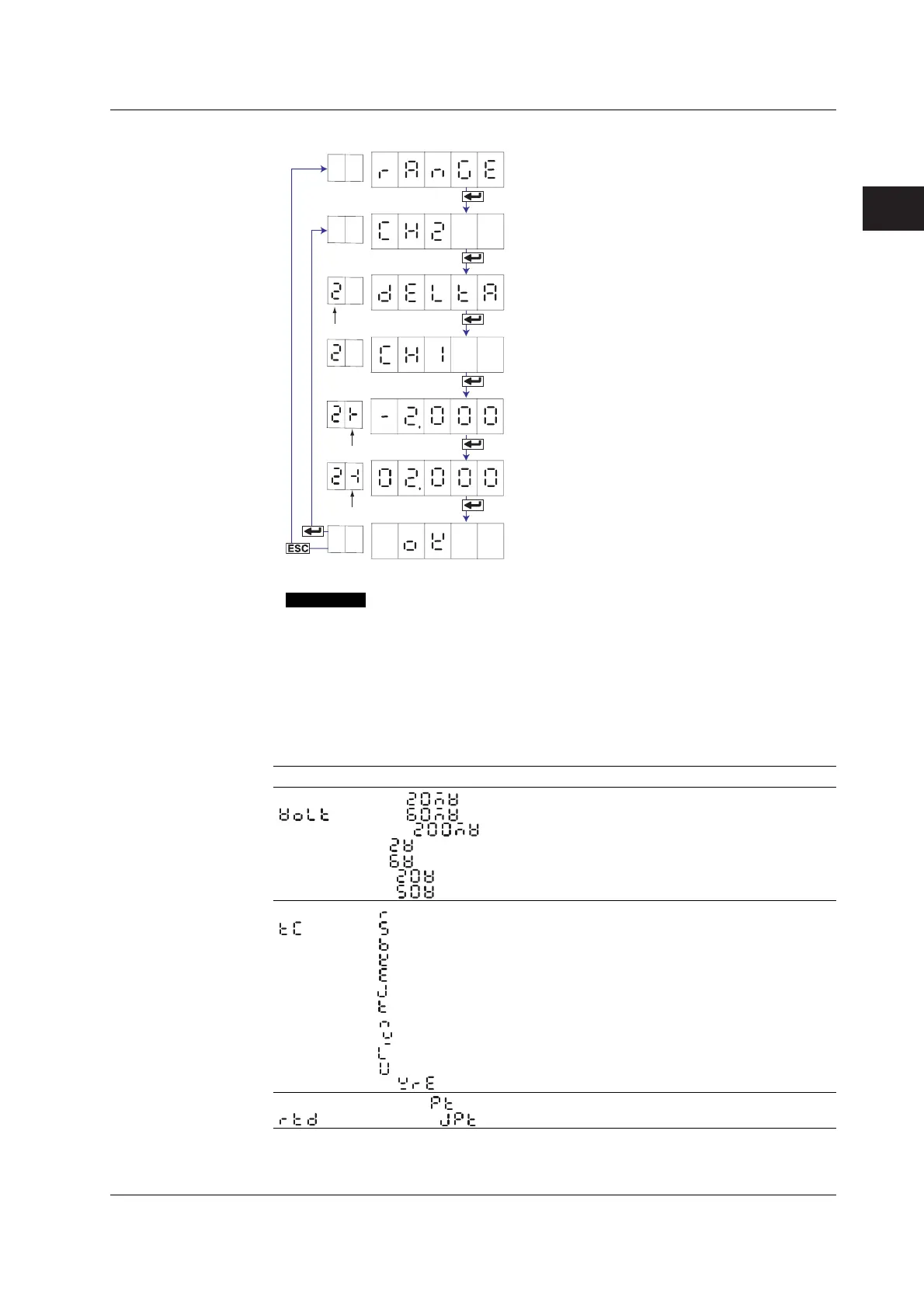

Delta Computation
Select the channel number.
Select the reference channel.
Set the left span value.
Set the right span value.
The settings are activated.
Select “RANGE.”
Select “DELTA.”
(RANGE)
(CH2)
(DELTA)
(CH1)
(OK)
Channel number
Span left
Span right
Description
• Reference Channel
The reference channel must be a channel that is smaller in channel number than the
channel being set.
• Span Left and Span Right
The range type is the same as the reference channel. The span left and span right
can be set in the range shown below. Span left and span right cannot be set to the
same value.
Input Type Range Type Selectable Span Range (°C) Selectable Span Range (°F)
DC voltage 20 mV ( ) –20.00 to 20.00 mV
( ) 60 mV ( ) –60.00 to 60.00 mV
200 mV ( ) –200.0 to 200.0 mV
2 V ( ) –2.000 to 2.000 V
6 V ( ) –6.000 to 6.000 V
20 V ( ) –20.00 to 20.00 V
50 V ( ) –50.00 to 50.00 V
Thermocouple R ( ) –1760.0 to 1760.0°C –3168 to 3168°F
( )S () –1760.0 to 1760.0°C –3168 to 3168°F
B ( ) –1820.0 to 1820.0°C –3276 to 3276°F
K ( ) –1570.0 to 1570.0°C –2826 to 2826°F
E ( ) –1000.0 to 1000.0°C –1800 to 1800°F
J ( ) –1300.0 to 1300.0°C –1999.9 to 2340.0°F
T ( ) –600.0 to 600.0°C –1080.0 to 1080.0°F
N ( ) –1300.0 to 1300.0°C –2340 to 2340°F
W ( ) –1999.9 to 2315.0°C –4167 to 4167°F
L ( ) –1100.0 to 1100.0°C –1980 to 1980°F
U ( ) –600.0 to 600.0°C –1080.0 to 1080.0°F
WRe ( ) –1999.9 to 2400.0°C –4320 to 4320°F
RTD PT(Pt100) ( ) –800.0 to 800.0°C –1440.0 to 1440.0°F
( ) JPT(JPt100) ( ) –750.0 to 750.0°C –1350.0 to 1350.0°F
2.1 Setting the Input Range
