3-15
IM 04P03B01-01E
Setup Operations for Convenient Functions (Setting Mode)
3
3.12 Setting Up Start Printout and End printout (/BT1 Option)

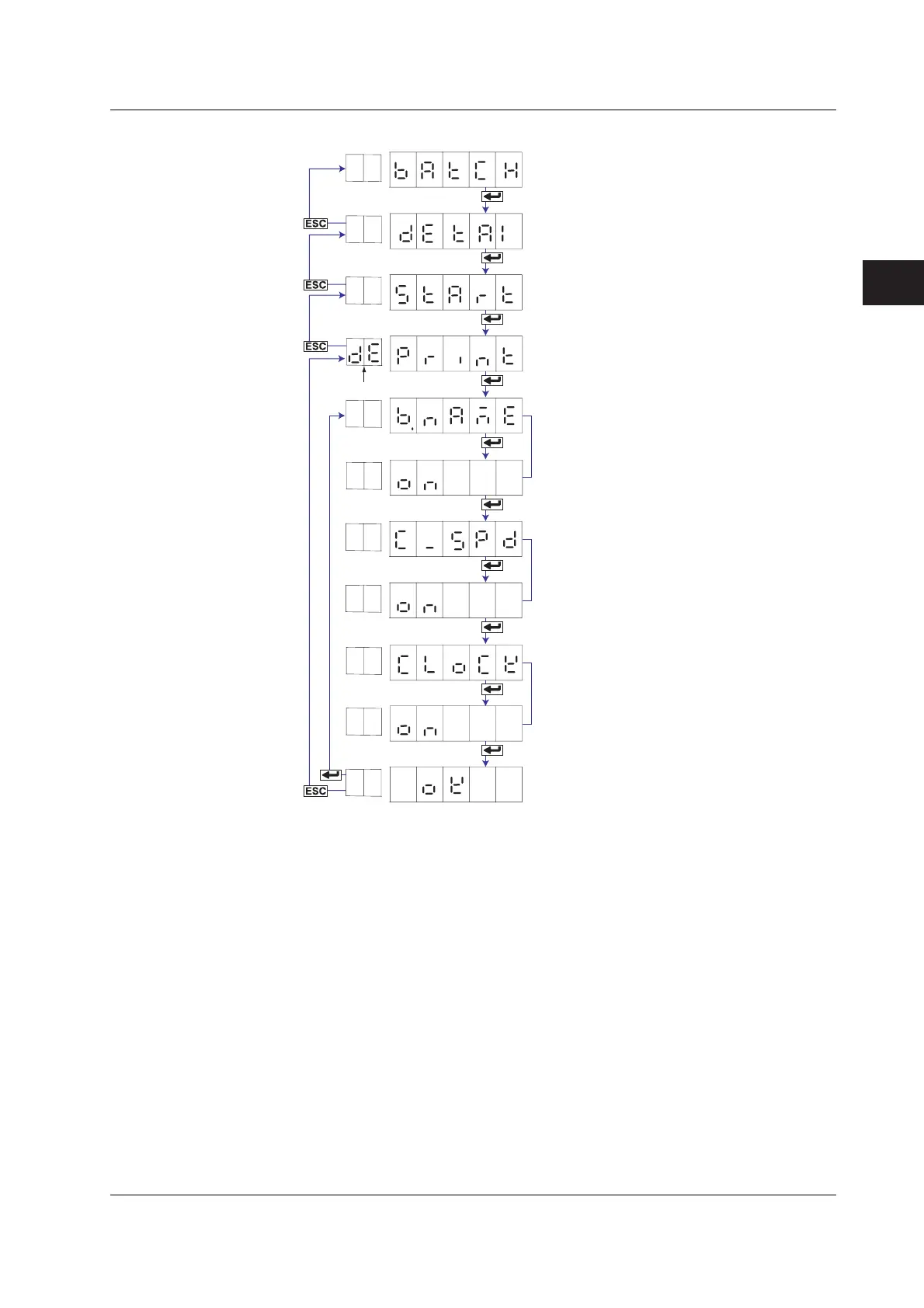

Selecting Printout ON/OFF for the Batch Name, Chart Speed, and Date/Time.
Select “BATCH.”
Select “DETAI” (Batch details).
(Start 2 and End 2 can be selected when
dual comment is set to USE)
Select a mode.
Select “PRINT” (printout).
(BATCH)
(DETAI)
(START)
(PRINT)
(B.NAME)
(ON)
(C_SPD)
(ON)
(CLOCK)
(ON)
The settings are activated.
(OK)
Select whether to printout date/time.
Select ON or OFF.
Select whether to printout chart speed.
Select ON or OFF.
Select whether to printout Batch name
(Batch No. and Lot No.). Select ON or
OFF.
batch details
To Next Page
