Setting the Feed Amount, Lot Number Update, and Ejection of Pen Offset
Compensating Data

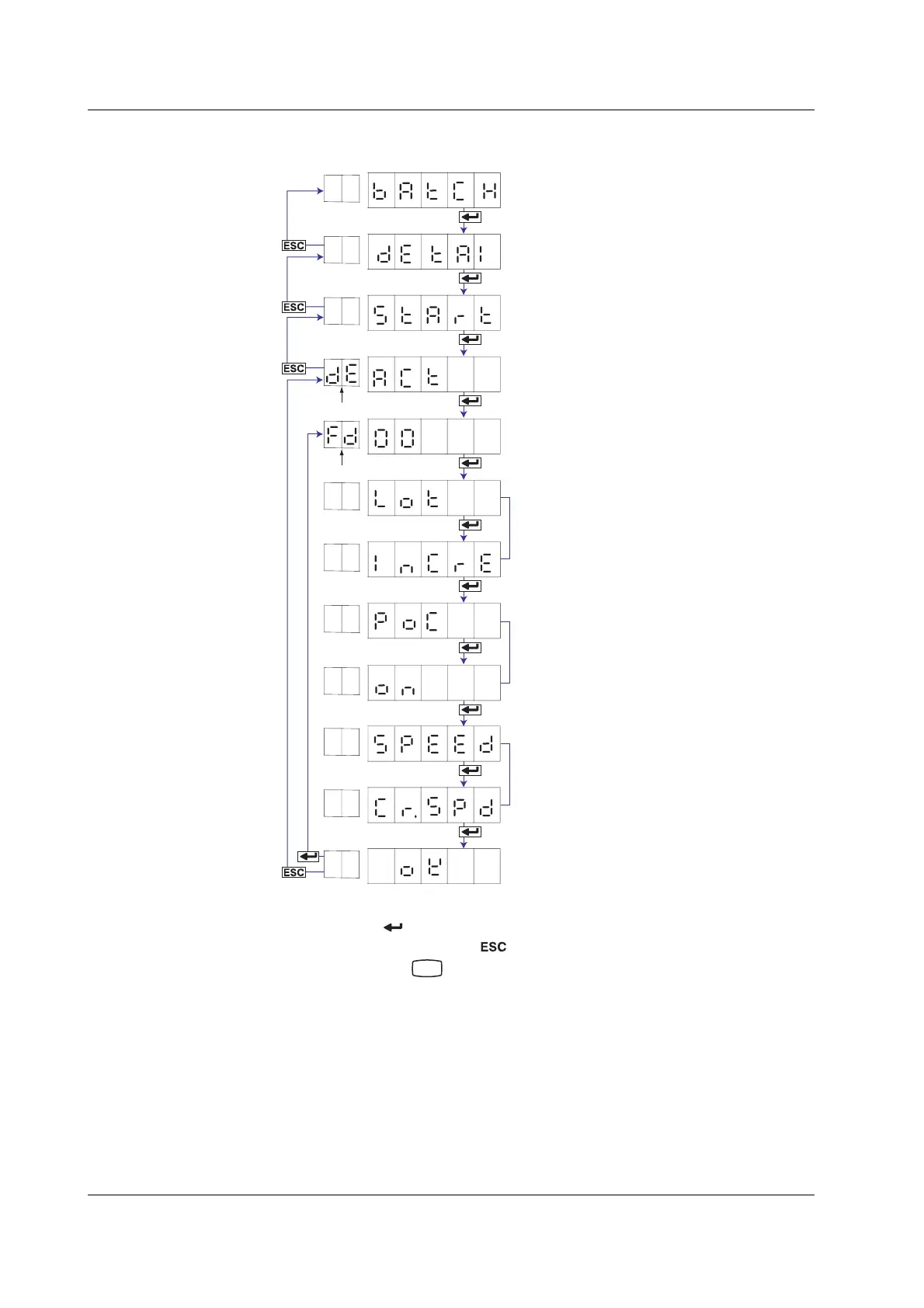

Select “BATCH.”
Select “DETAI” (Batch details).
(Start 2 and End 2 can be selected when
dual comment is set to USE)
Select a mode.
Select “ACT” (action).
Set the chart paper feed amount before
Start printout and after End printout.
(BATCH)
(DETAI)
(START)
(ACT)
(LOT)
(INCRE)
(POC)
(ON)
(SPEED)
(CR.SPD)
(OK)
The settings are activated.
(Only when pen offset compensating data
ejection is ON)
Select the chart speed when ejecting the
pen offset compensating data.
(Only when the mode is End or End 2 and
the lot number is 4 or 6 digits)
Select to update the lot number when
recording stops.
(Only when the mode is End or End 2 and
pen offset compensating is ON on pen models.)
Select to eject the pen offset compensating
data when recording stops.
batch details
feed
3. Press the key to set other items.
If you are done, press the key.
4. Hold down the
MENU
key for 3 seconds to return to Operation mode.
