Cradle Installation
146

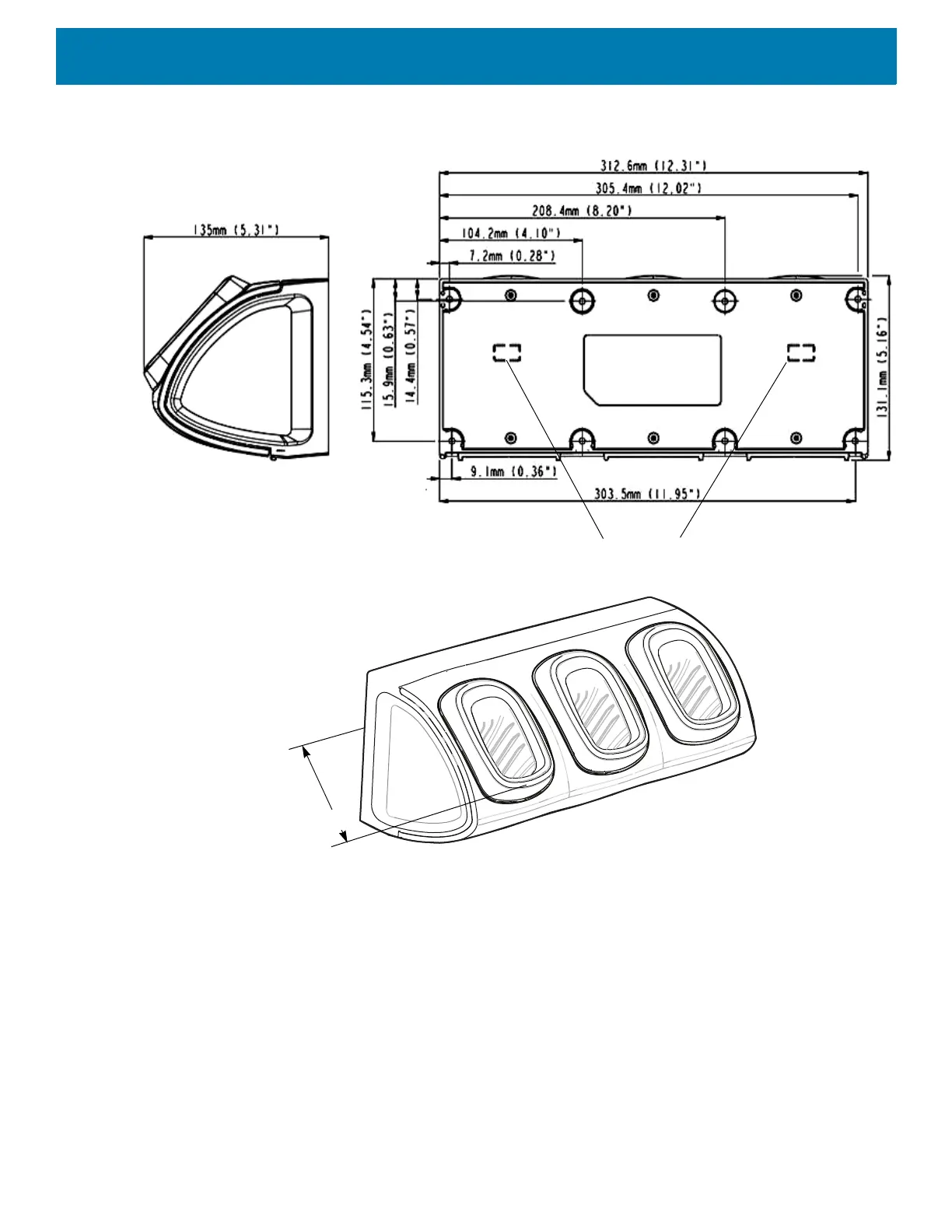

Figure 109 Three Slot Cradle - Mounting Template and Overall Depth
2. In all cradles, plug the power extension cable (p/n CBL-MC18-EXINT1-01) to free the connector on left slot.
3. Plug interconnect cable (p/n 25-66431-01R) to free connector on right slot.
Depth of cradle 125 mm (3.9”)
Access Holes
