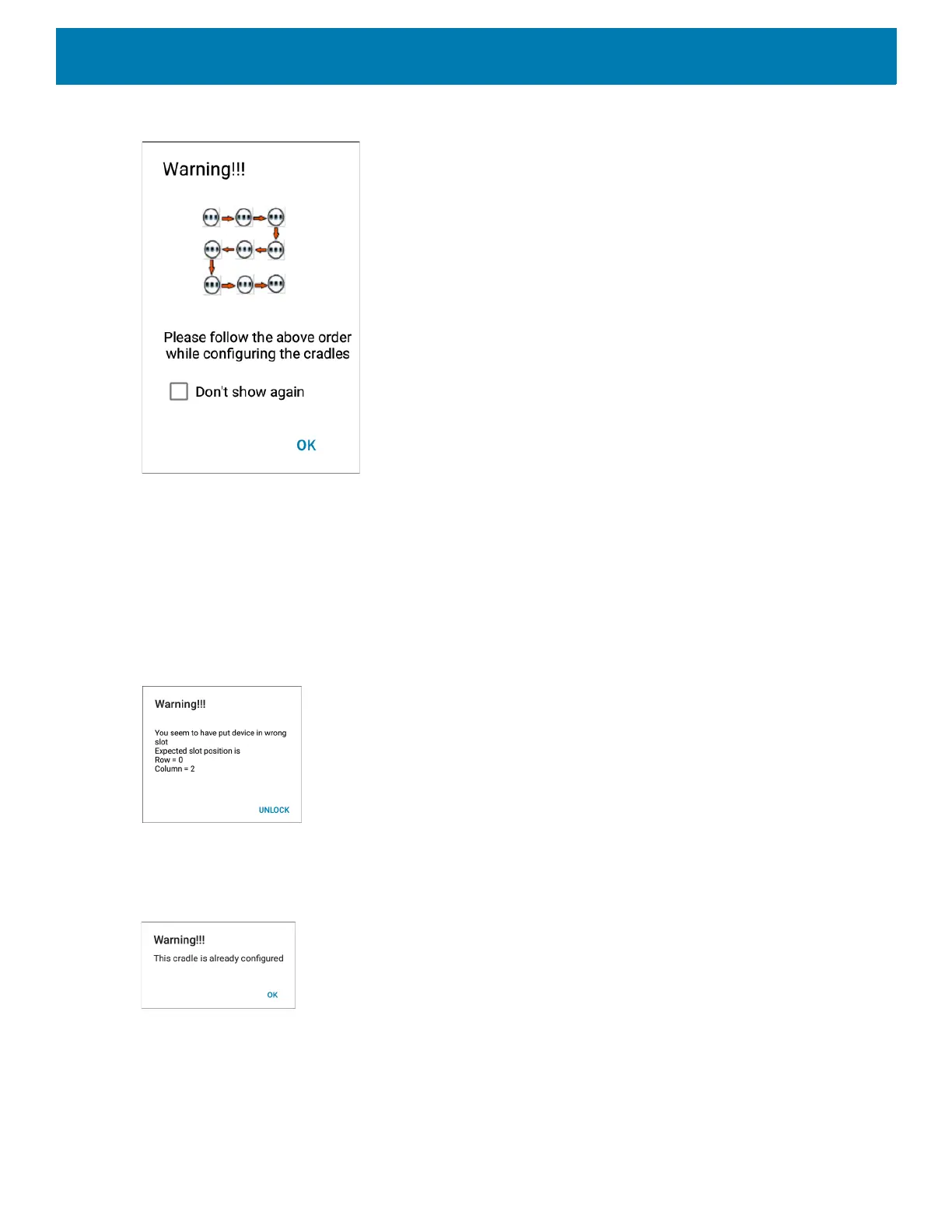

Figure 56 Warning Dialog - Follow Specified Order
After the first cradle is programmed successfully, a check mark appears in the location of the cradle icon
and an arrow on the screen points in the direction of where to insert the device in the next slot. An audible
sound or visual cradle charge indication may be present.
9. Remove the device from the first cradle, and move in the specified direction to insert the device in the next
slot.
CradleSmartConfig directs the user to move in the proper direction. If the device is inserted into the wrong
slot, the user is prompted.
Figure 57 Warning! Wrong Slot
If the device is inserted into the same slot, a message indicates that the cradle has already been
configured.
Figure 58 Warning! Cradle Already Configured
Note that each slot on the Three Slot Cradle needs to be programmed separately. The app guides the user
to change rows in a zig-zag pattern for efficiency, with the first row going from left to right with serial
numbers (last digits) 1,2,3 and the next row going from right to left with serial numbers (last digits) 3,2,1.
The app also guides the user to skip the empty or blank areas. In a single slot cradle, the HW serial number
last digit is 0.
