P1036102-007 ZXP Series 7 Card Printer Service Manual 131
Replacement Procedures for the Printer
Procedures: Print Engine
Middle and Back Frame Separation

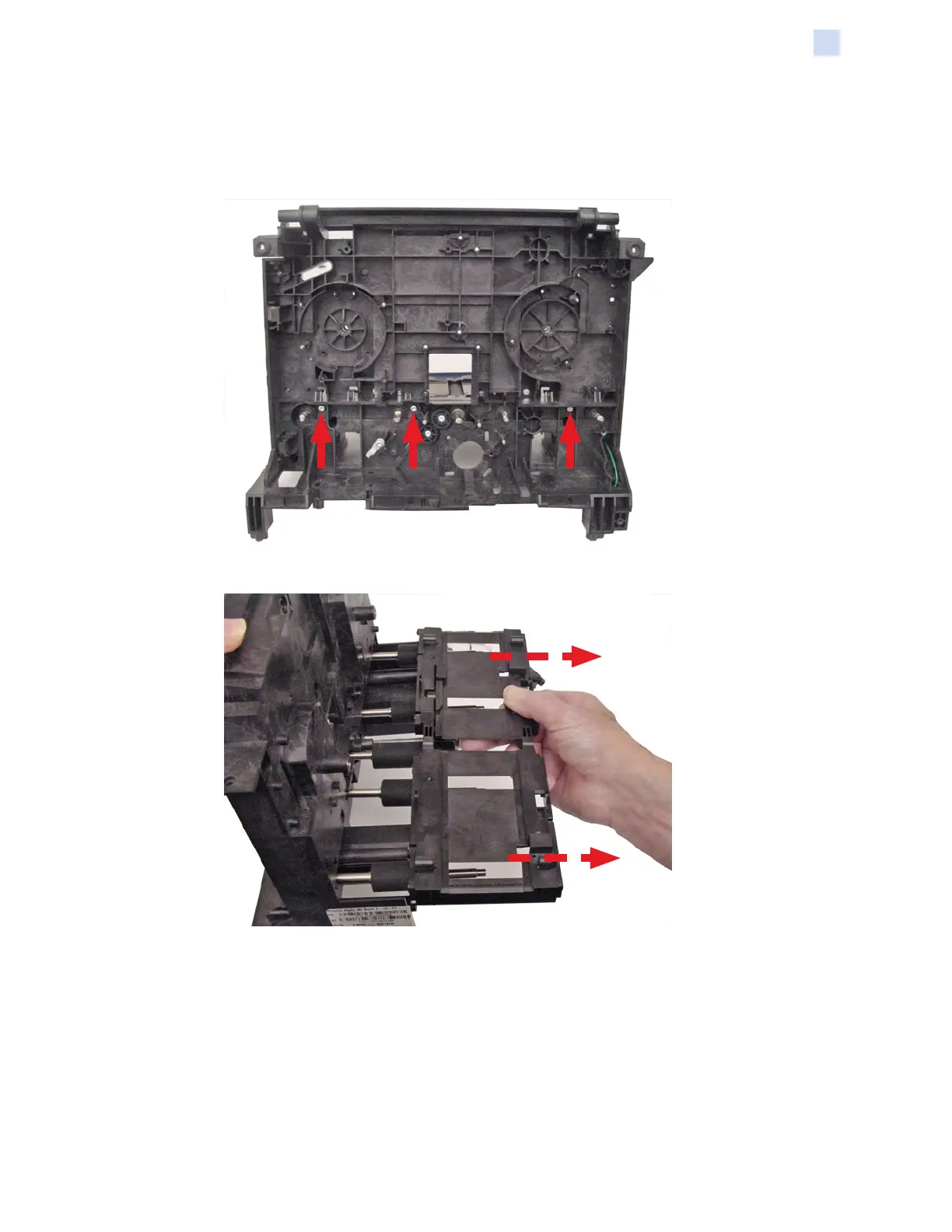

Step 1. With a TORX T8 driver, remove the three screws holding the Middle and
Back Frames together—see arrows below.
Step 2. Separate the Frames.
