130 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Print Engine
Pinch Rollers

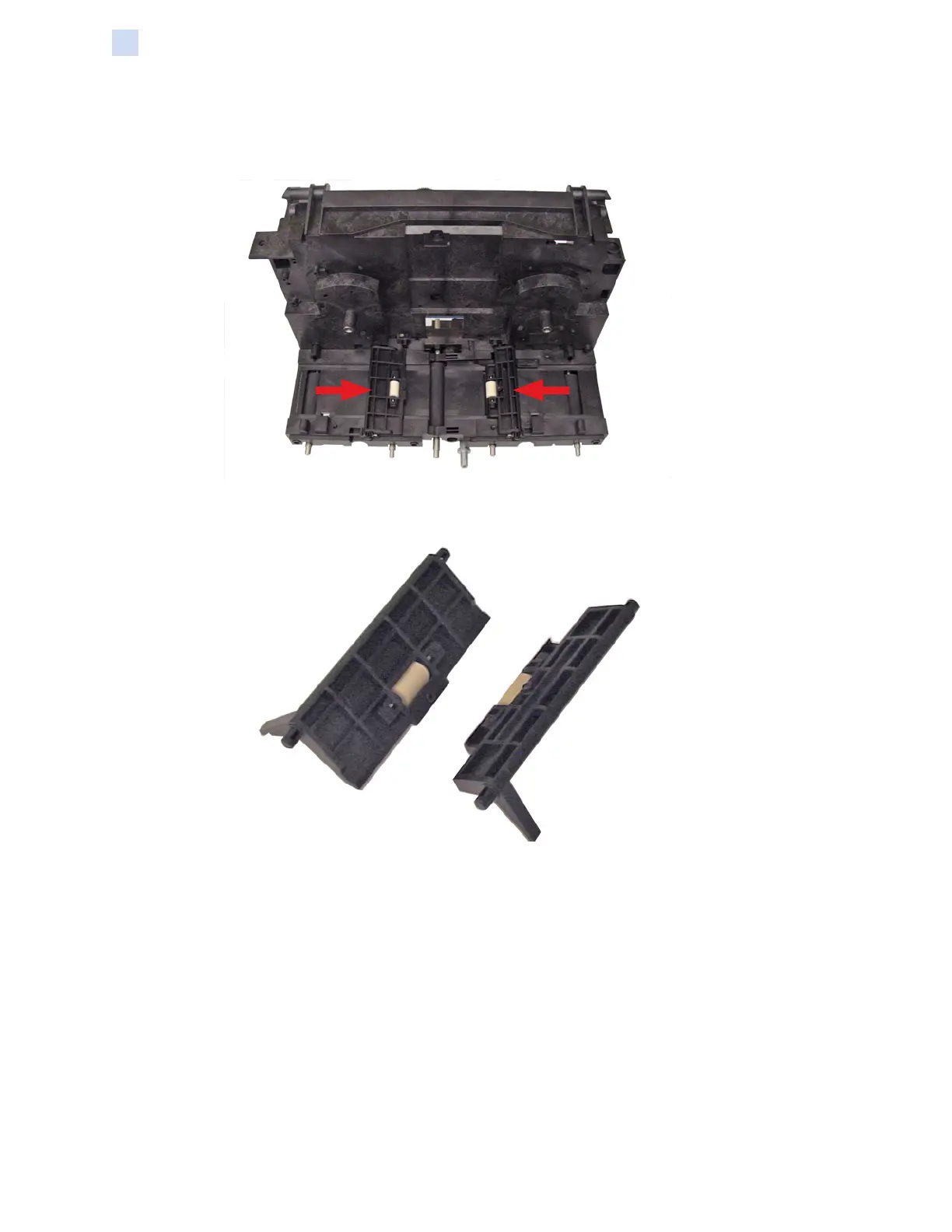

Step 1. Lift the two Pinch Rollers (arrows below) up and out of the Frame.
Step 2. Set the Pinch Rollers aside.
