P1036102-007 ZXP Series 7 Card Printer Service Manual 129
Replacement Procedures for the Printer
Procedures: Print Engine
Sync Sensor

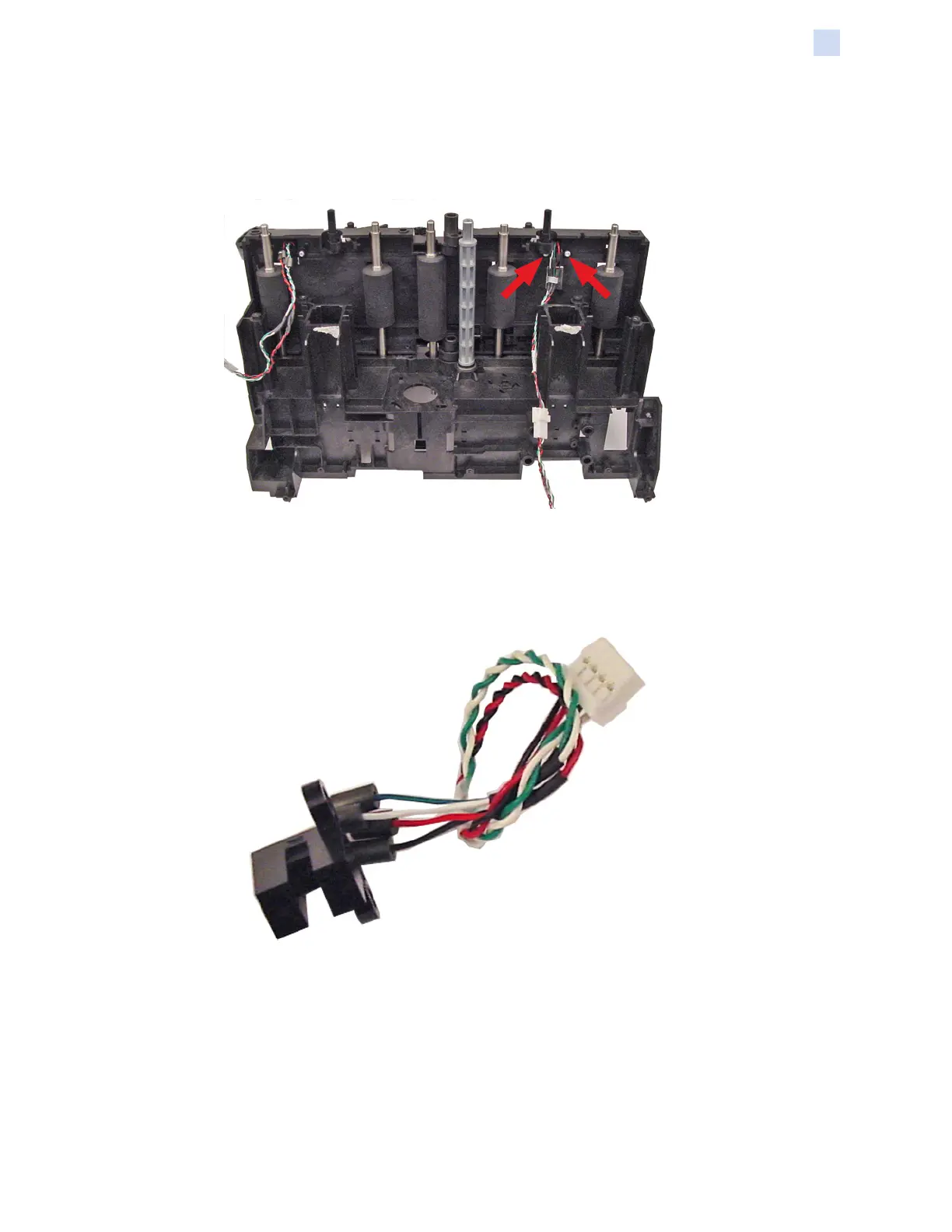

Step 1. With a TORX T8 driver, remove the two screws holding the Sync Sensor in
place—see arrows below.
Step 2. Free the cable from the aluminum cable tie.
Step 3. Unplug the sync sensor cable-to-cable connection.
Step 4. Remove the Sync Sensor, and set it aside.
To Next Page
