128 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Print Engine
Exit Sensor

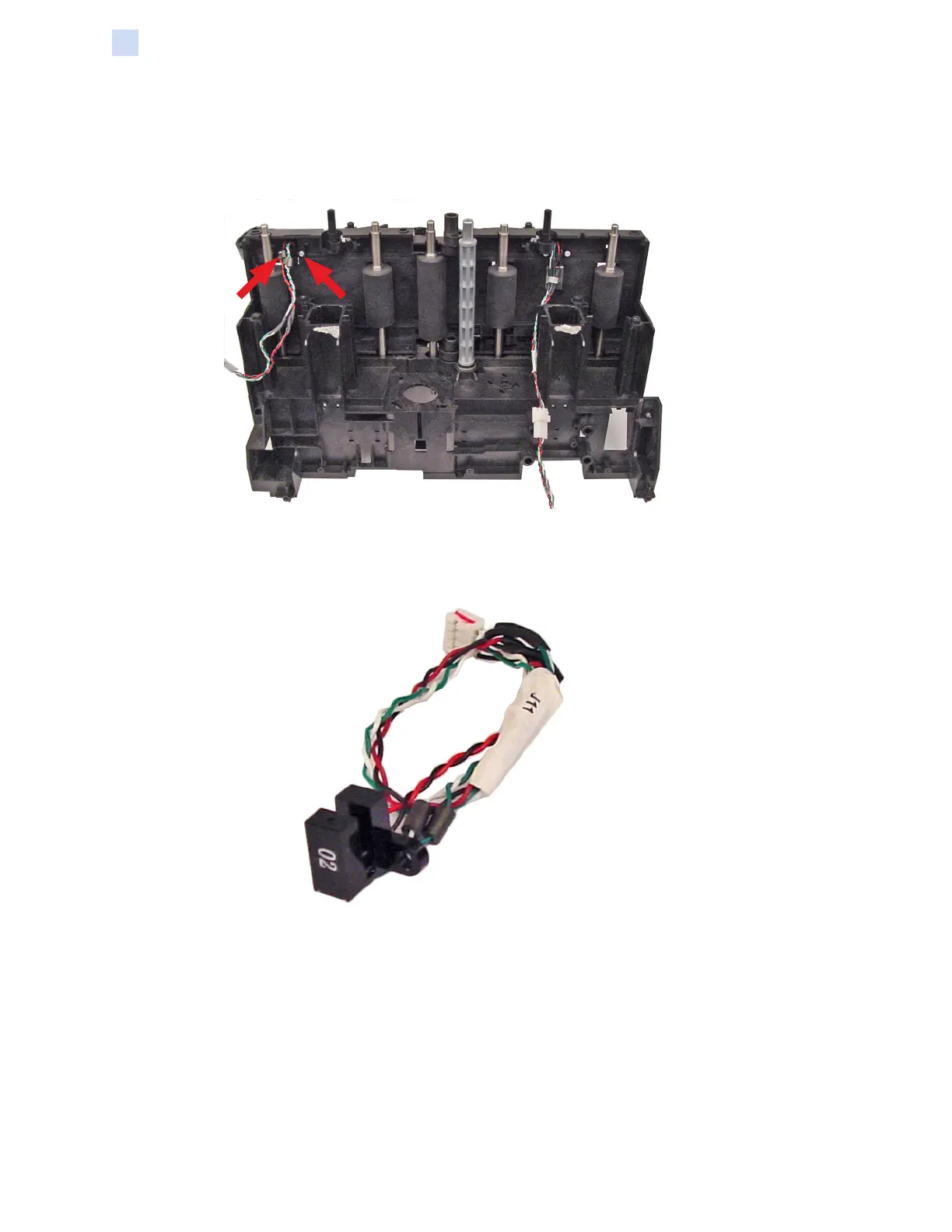

Step 1. With a TORX T8 driver, remove the two screws holding the Exit Sensor in
place—see arrows below.
Step 2. If not already done, unplug J11 from the Main PCBA.
Step 3. Remove the Exit Sensor, and set it aside.
