P1036102-007 ZXP Series 7 Card Printer Service Manual 127
Replacement Procedures for the Printer
Procedures: Print Engine
Front Frame

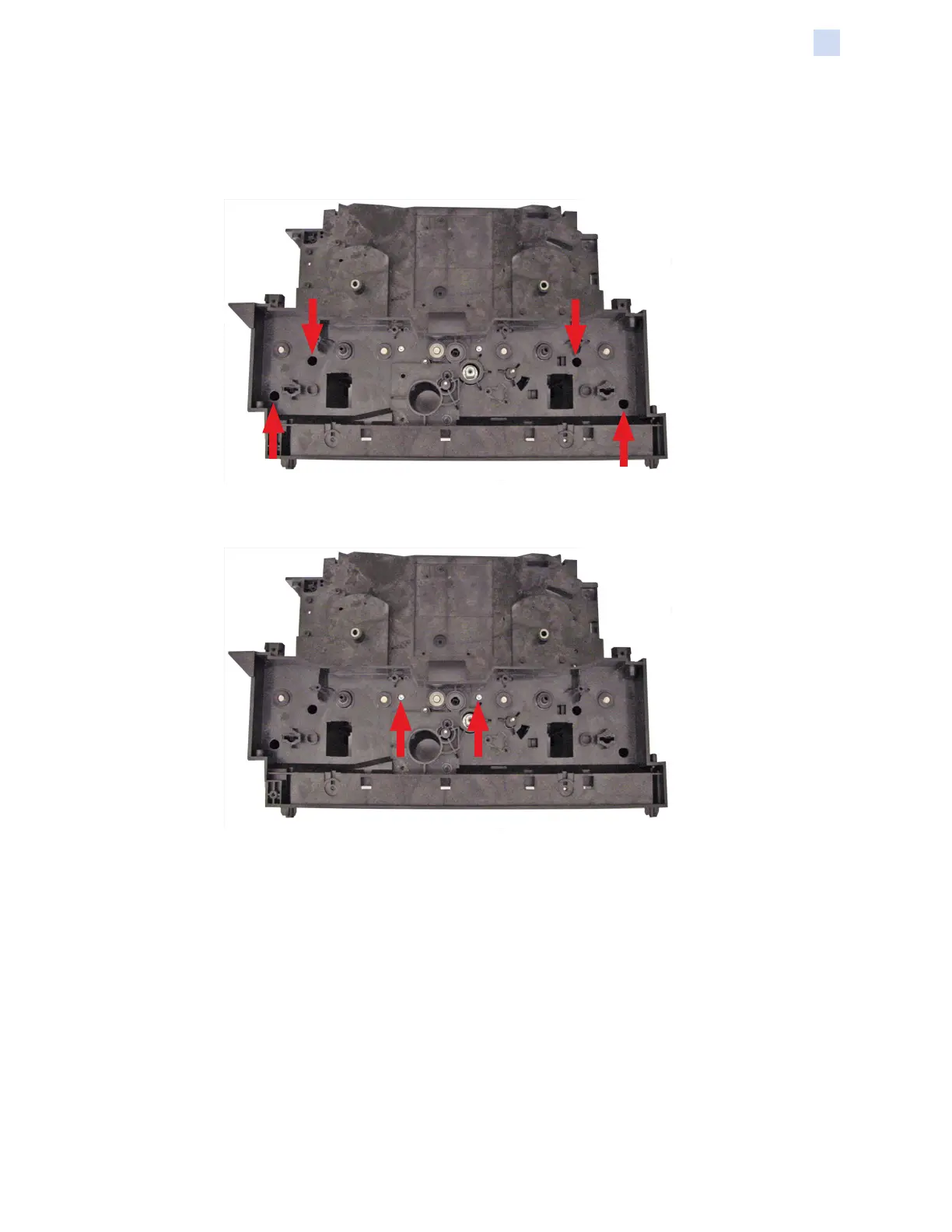

Step 1. With a TORX T10 driver, remove the four screws holding the Front Frame in
place.
Step 2. With a TORX T10 driver, remove the two screws holding the Front Frame in
place.
Step 3. Carefully remove the Front Frame, and set it aside.
