Zebra ZXP 7 series Service Manual

152 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Feeder Module
Installation

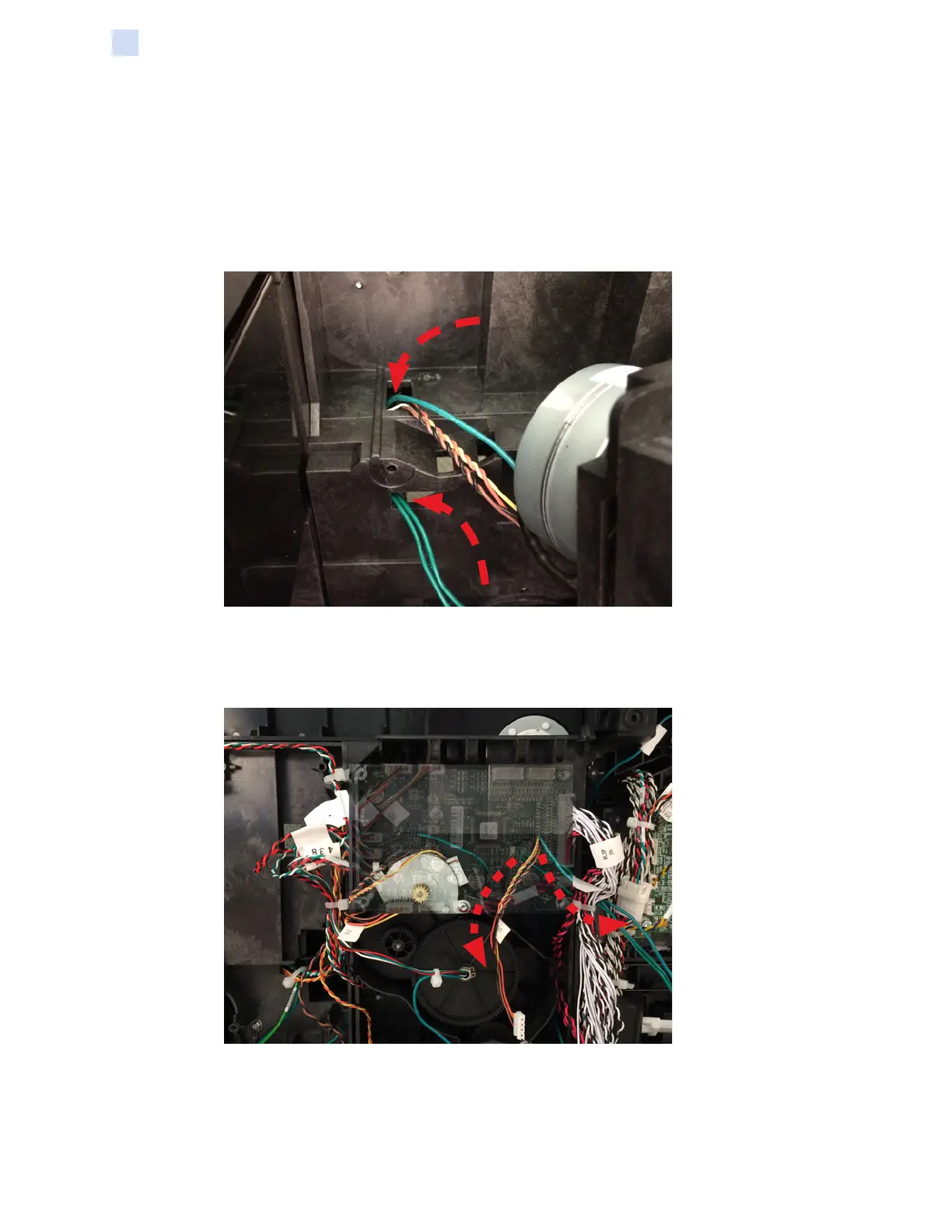

Step 1. Position the replacement feeder module and insert the feeder motor cable
and associated ground wire through the upper access hole in the frame
directly behind the feeder module (upper arrow).
Step 2. Insert the two other ground wires through the lower access hole in the
frame (lower arrow).
Step 3. Set the feeder module in place.
Step 4. From the rear of the printer, use a spring hook tool to reach the feeder motor
and ground cables from behind the PCBA (shown dimmed for clarity).

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
