Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 153
Replacement Procedures for the Printer
Procedures: Feeder Module

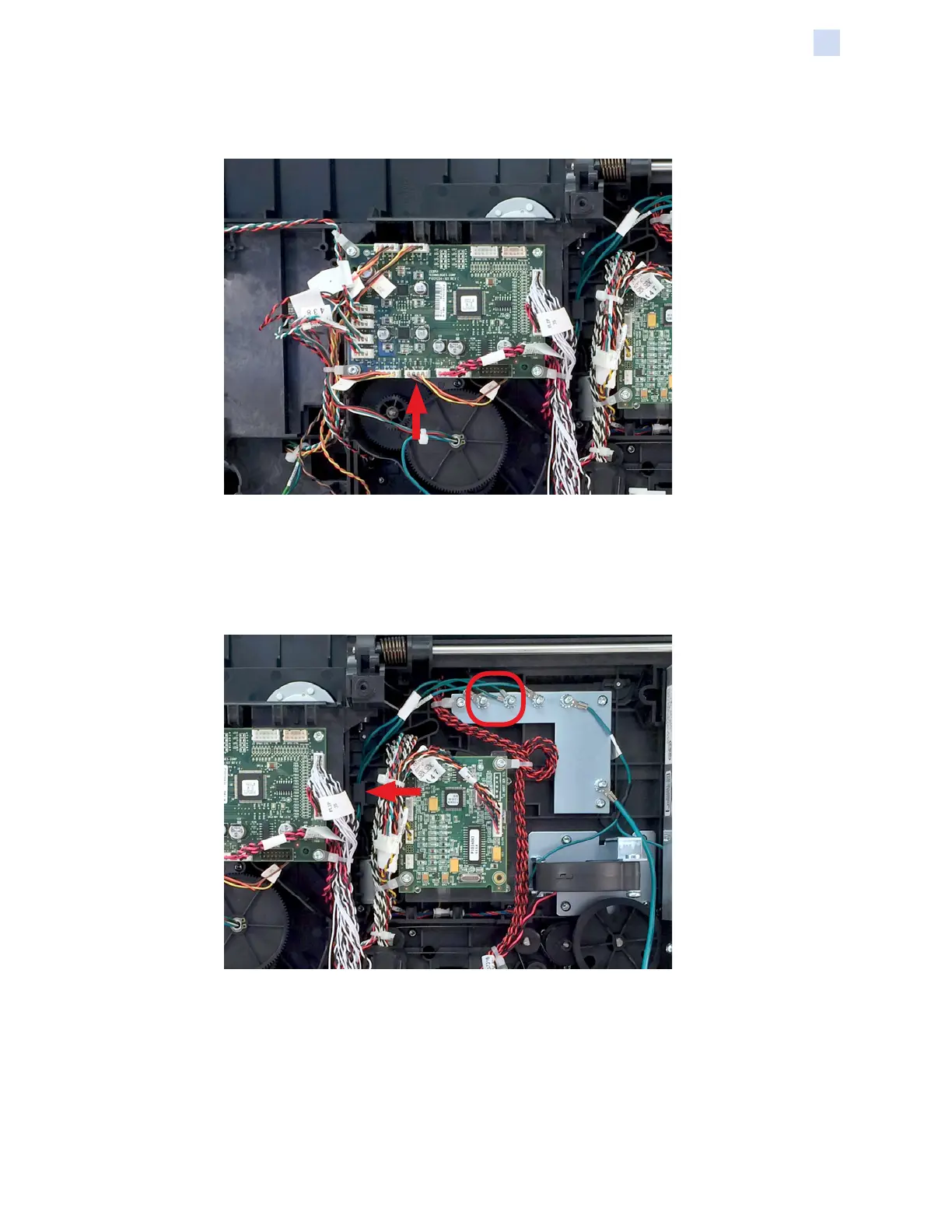

Step 5. Connect the feeder motor plug to J8 on the flipper module PCBA (arrow
below).
Step 6. From the rear of the printer, reconnect the ground wires circled below;
connect the two feeder module grounds connected to lug #2, and connect
the feeder motor ground connected to lug #3. Secure the ground wires with
a 5.5 mm nut.
Step 7. Secure the ground wires in the cable clip (arrow below).

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
