156 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Feeder Module

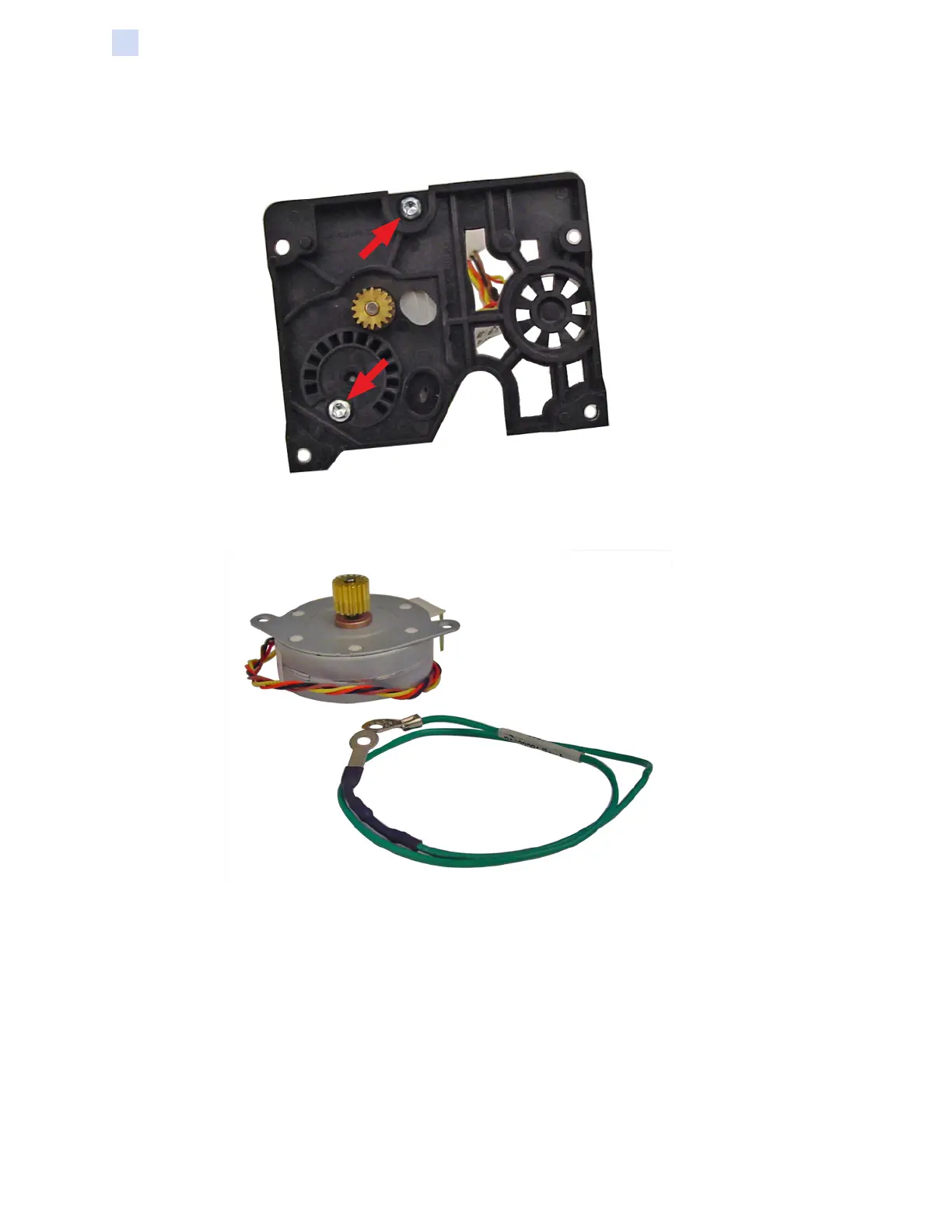

Step 4. With a TORX T10 driver, remove the two screws, washers, and nuts holding
the Feeder Motor to the Motor Plate.
Step 5. Remove the Feeder Motor and associated green ground wire from the
Motor Plate, and set them aside.
