Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 155
Replacement Procedures for the Printer
Procedures: Feeder Module
Feeder Motor

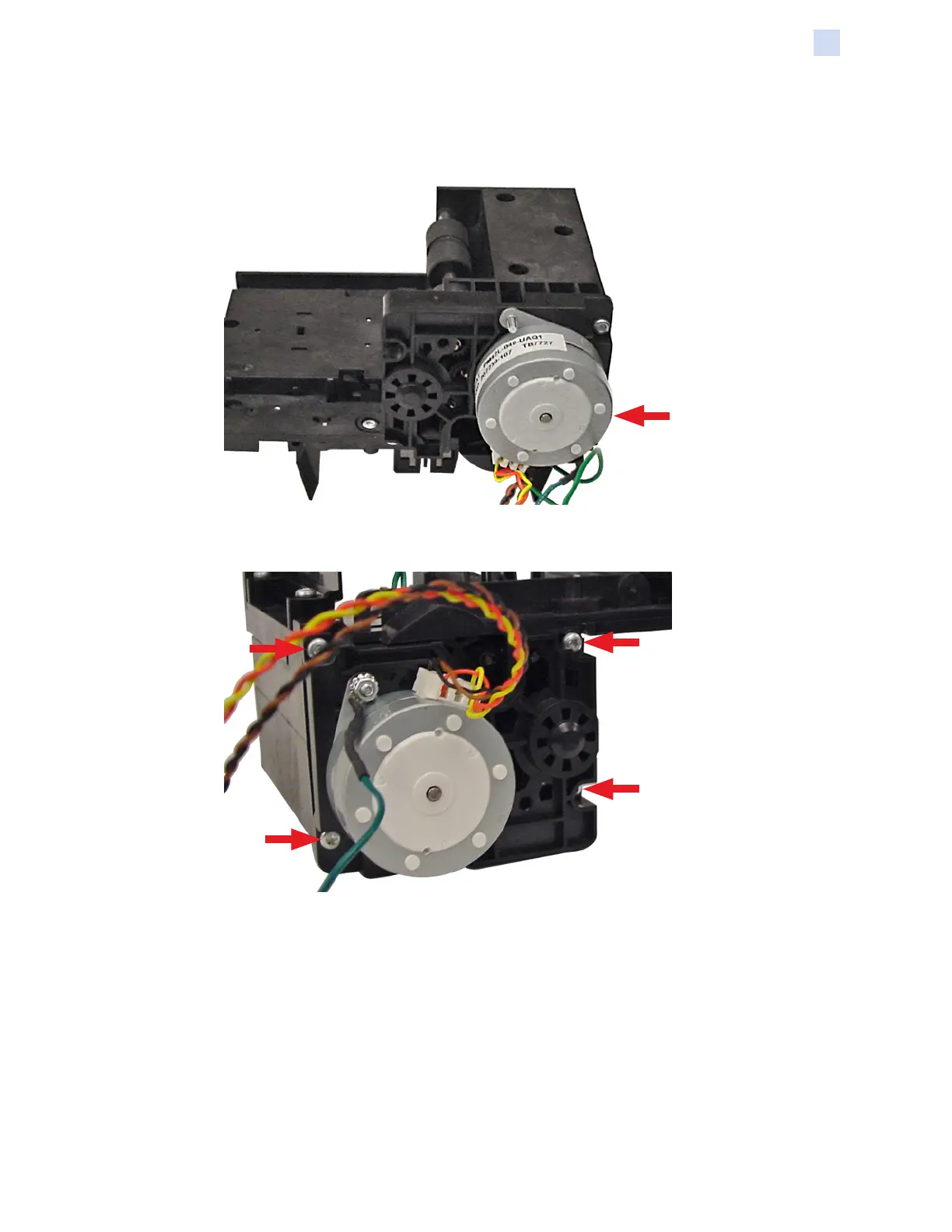

Step 1. Locate the Feeder Motor (arrow below).
Step 2. With a TORX T10 driver, remove the four screws and washers holding the
Feeder Motor and Motor Plate in place.
Step 3. Remove the Feeder Motor and Motor Plate.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
