Zebra ZXP 7 series Service Manual

160 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Flipper Module

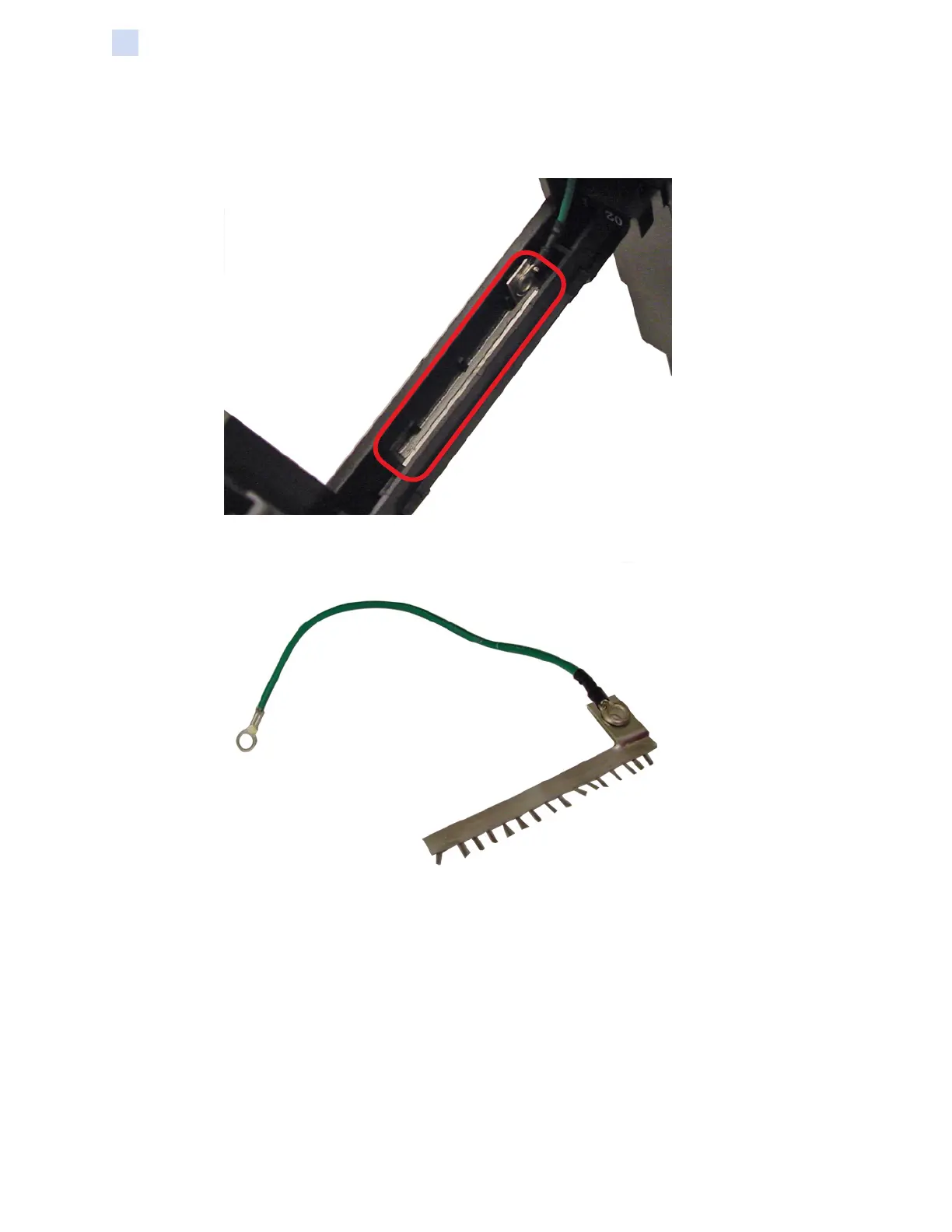

Step 3. With a small Flat-blade screwdriver, carefully free the ESD Brush (circled
below) from the Frame. Note that the ESD Brush is held in place with
adhesive.
Step 4. Set the ESD Brush aside.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
