P1036102-007 ZXP Series 7 Card Printer Service Manual 161

Replacement Procedures for the Printer

Procedures: Flipper Module

Flipper PCBA

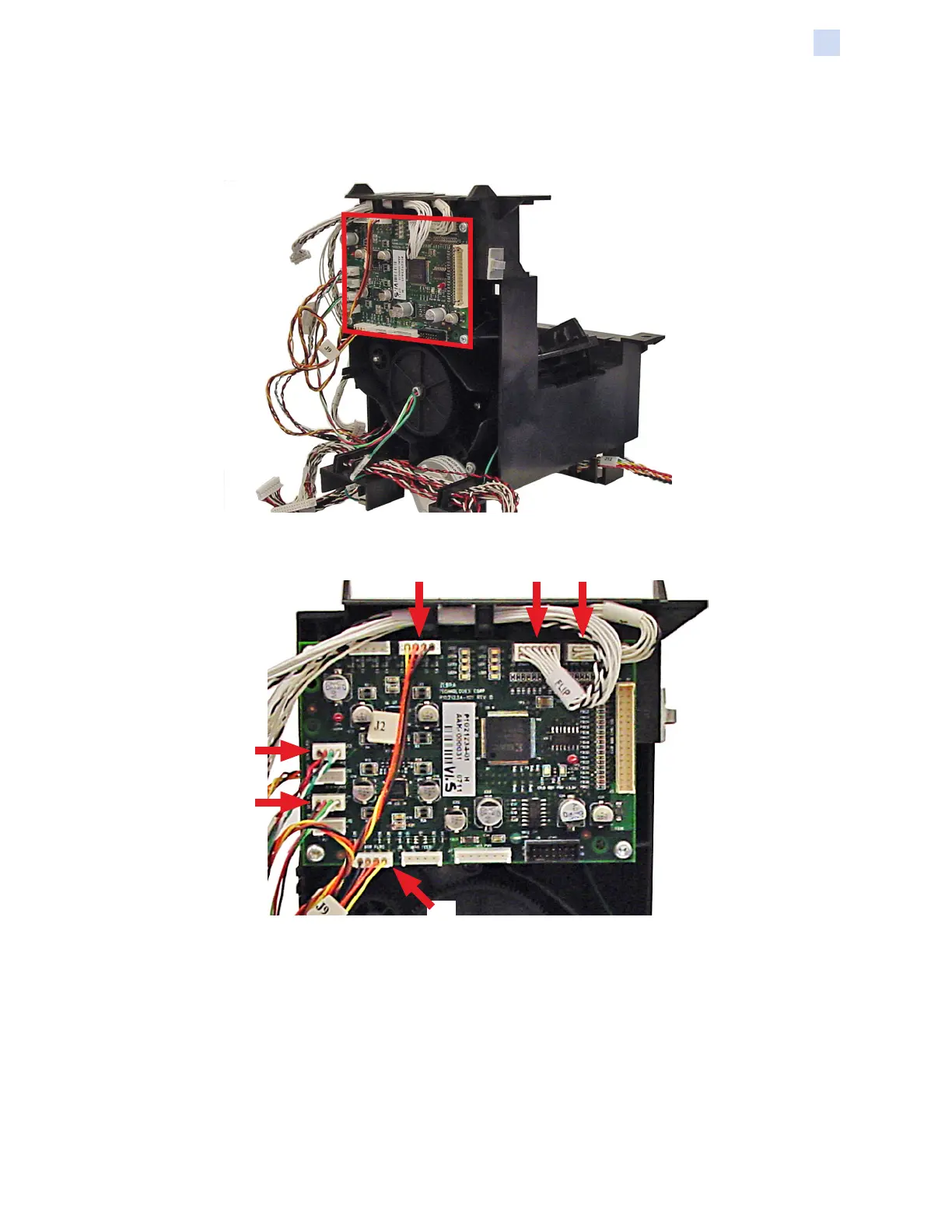

Step 1. Locate the Flipper PCBA (outlined below).

Step 2. Disconnect the plugs (J2, J3, J4, J9, J11, and J13) from the Flipper PCBA.

J13

J11

J3 J4
