Replacement Procedures for the Printer
Procedures: Flipper Module

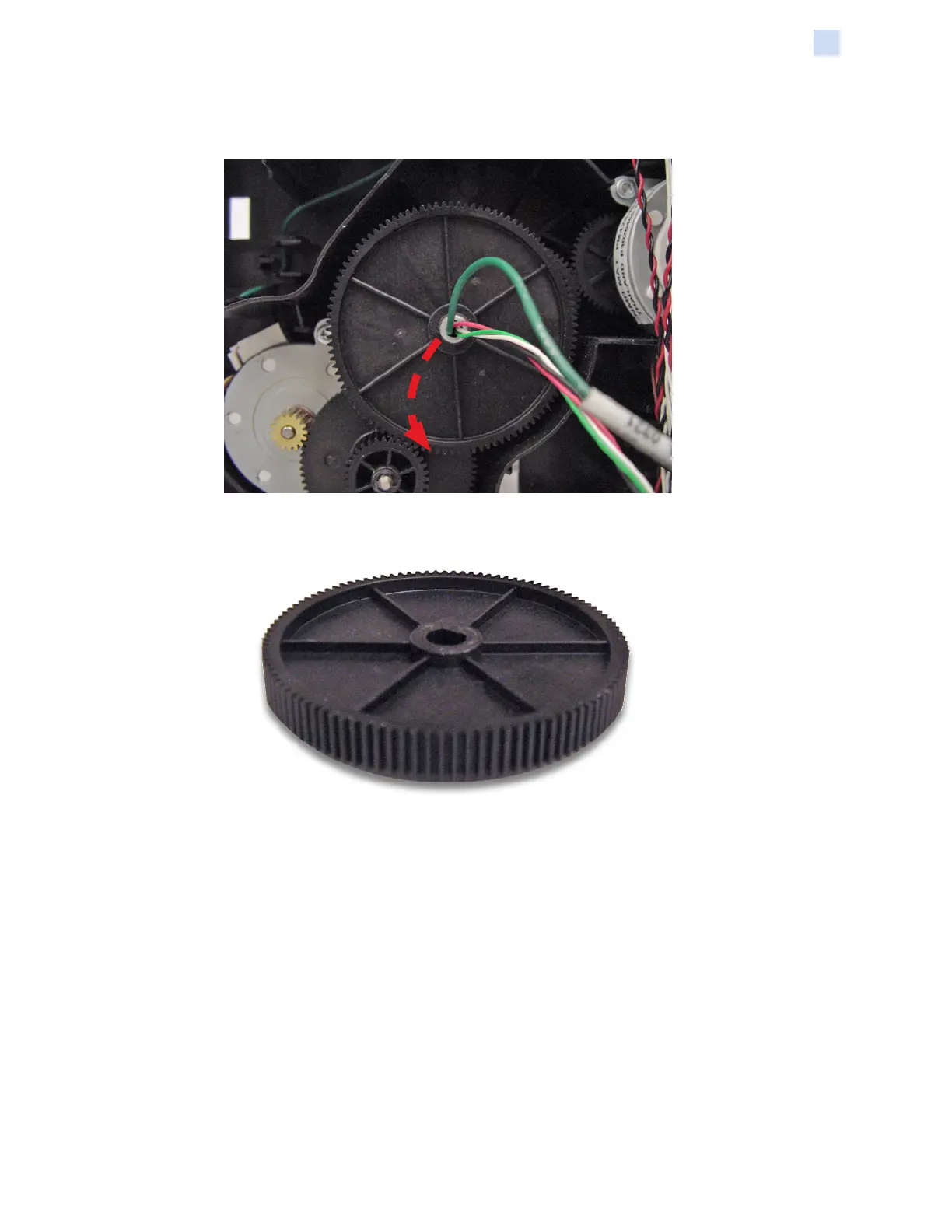

Step 3. Slide the Flipper Rotation Gear o the Shaft, the Ground Wire, and Sensor
Wires.
Step 4. Remove the Flipper Rotation Gear, and set it aside.
