166 ZXP Series 7 Card Printer Service Manual P1036102-007

Replacement Procedures for the Printer

Procedures: Flipper Module

85/35T Gear

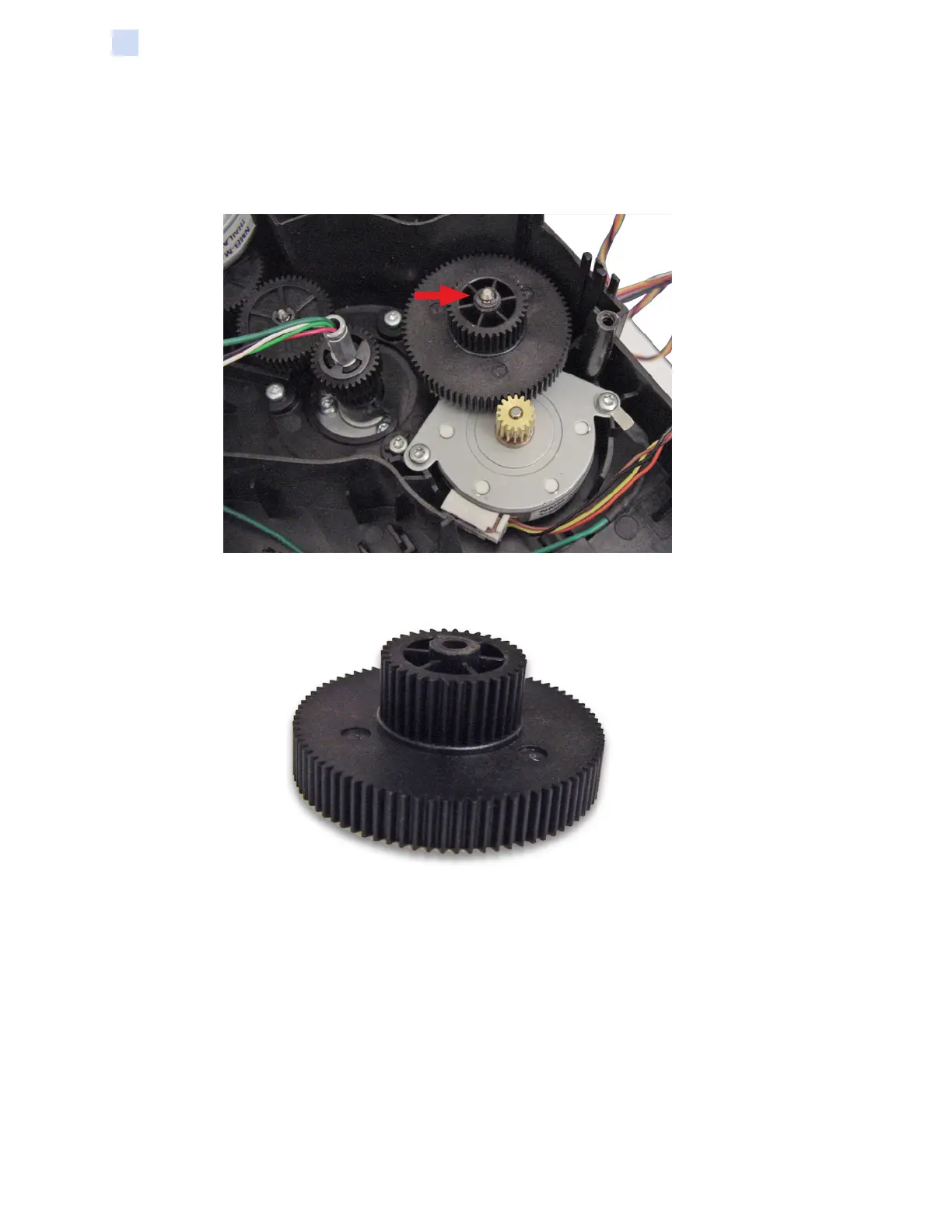

Step 1. With the Flipper Rotation Gear removed, the 85/35T Gear can be removed.

Step 2. Remove the retaining clip (arrow below) holding the 85/35T Gear in place.

Step 3. Remove the 85/35T Gear, and set it aside.
