P1036102-007 ZXP Series 7 Card Printer Service Manual 167
Replacement Procedures for the Printer
Procedures: Flipper Module
Flipper Rotation Motor

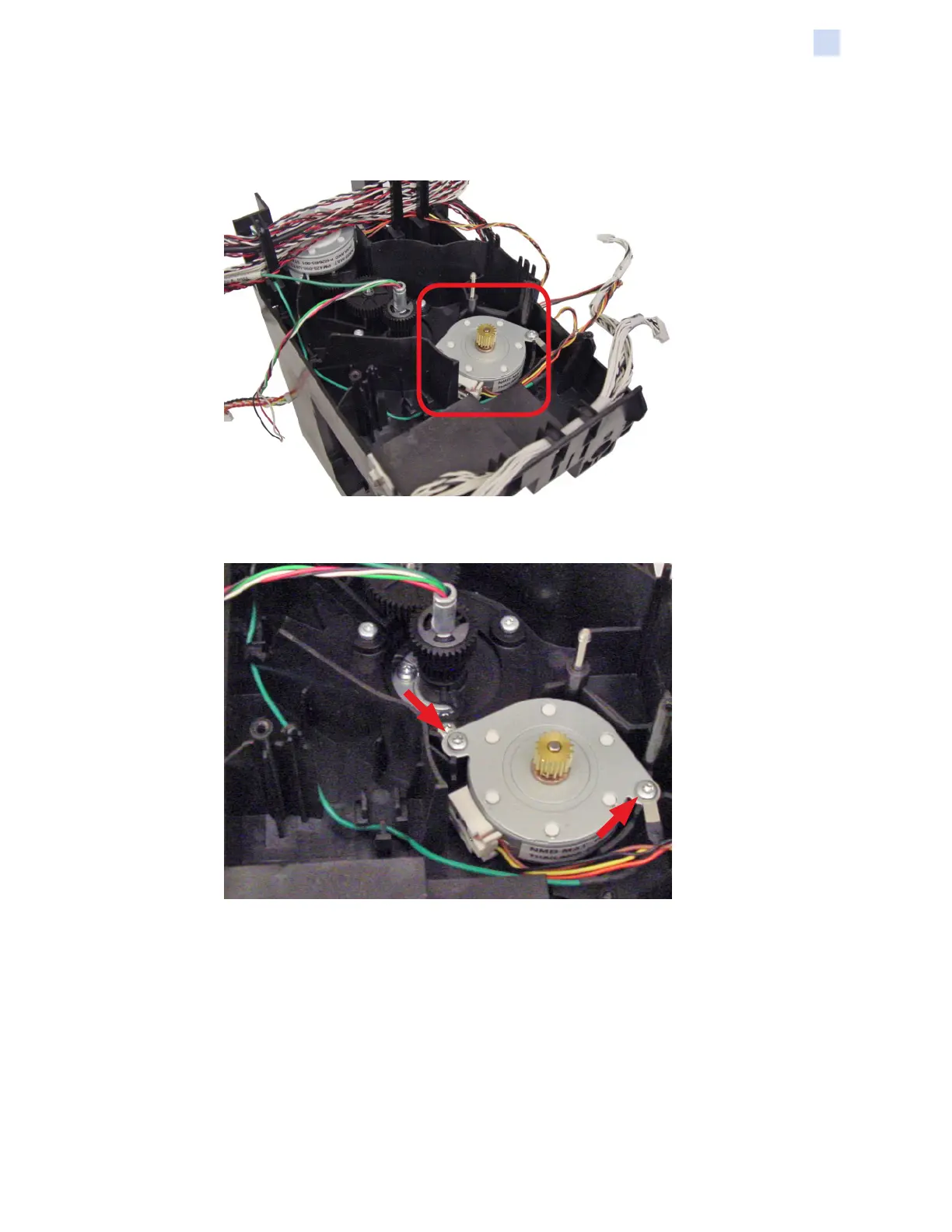

Step 1. Locate the Flipper Rotation Motor (circled below).
Step 2. With a TORX T10 driver, remove the two screws holding the Flipper Rotation
Motor in place.
Step 3. Remove the Flipper Rotation Motor and the associated green ground wire,
and set them aside.
