168 ZXP Series 7 Card Printer Service Manual P1036102-007

Replacement Procedures for the Printer

Procedures: Flipper Module

Flipper Drive Motor

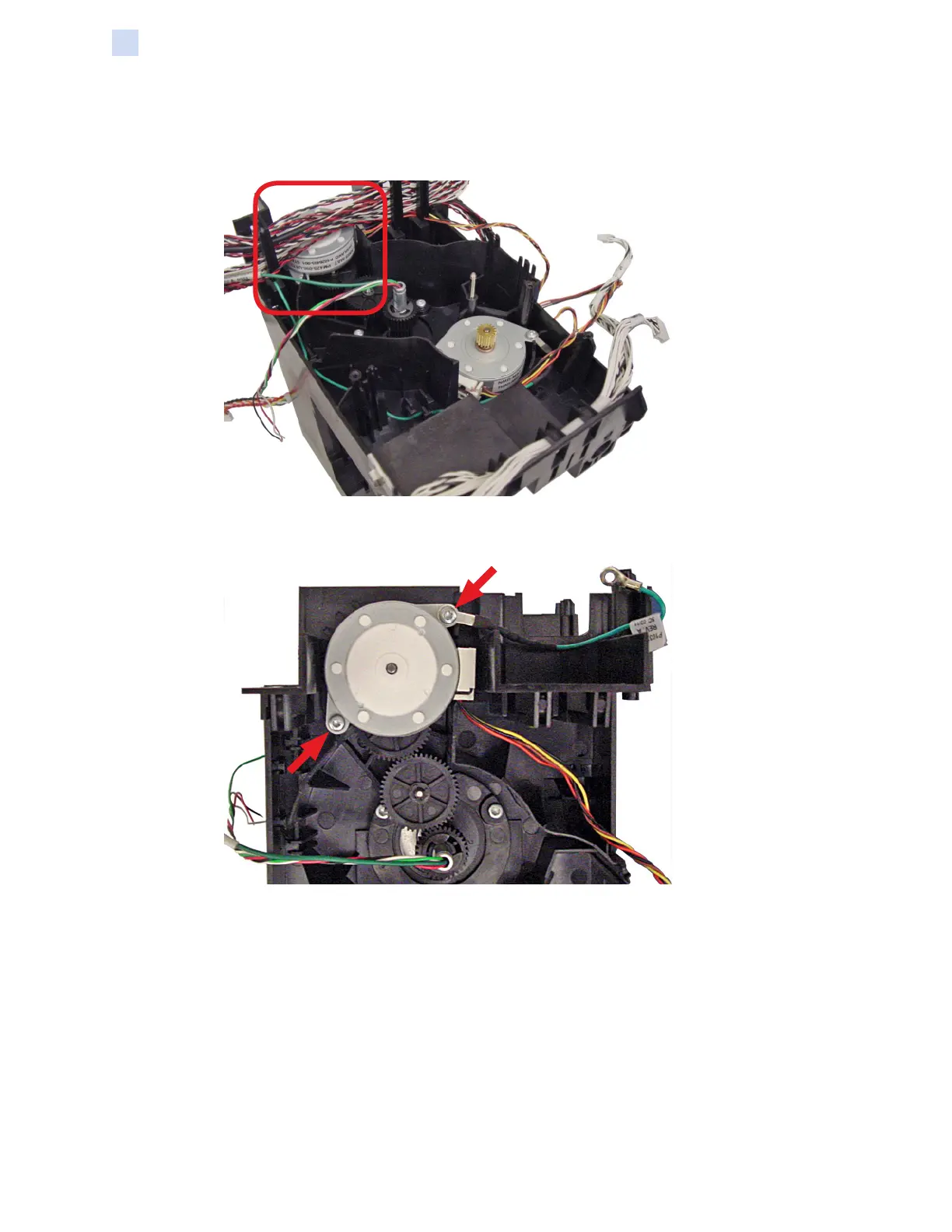

Step 1. Locate the Flipper Drive Motor (circled below).

Step 2. With a TORX T10 driver, remove the two screws holding the Flipper Drive

Motor in place. Note that the cable harness has been removed for clarity.

Step 3. Remove the Flipper Drive Motor and the associated green ground wire, and

set them aside.
