Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 169
Replacement Procedures for the Printer
Procedures: Flipper Module
Flexible Roller

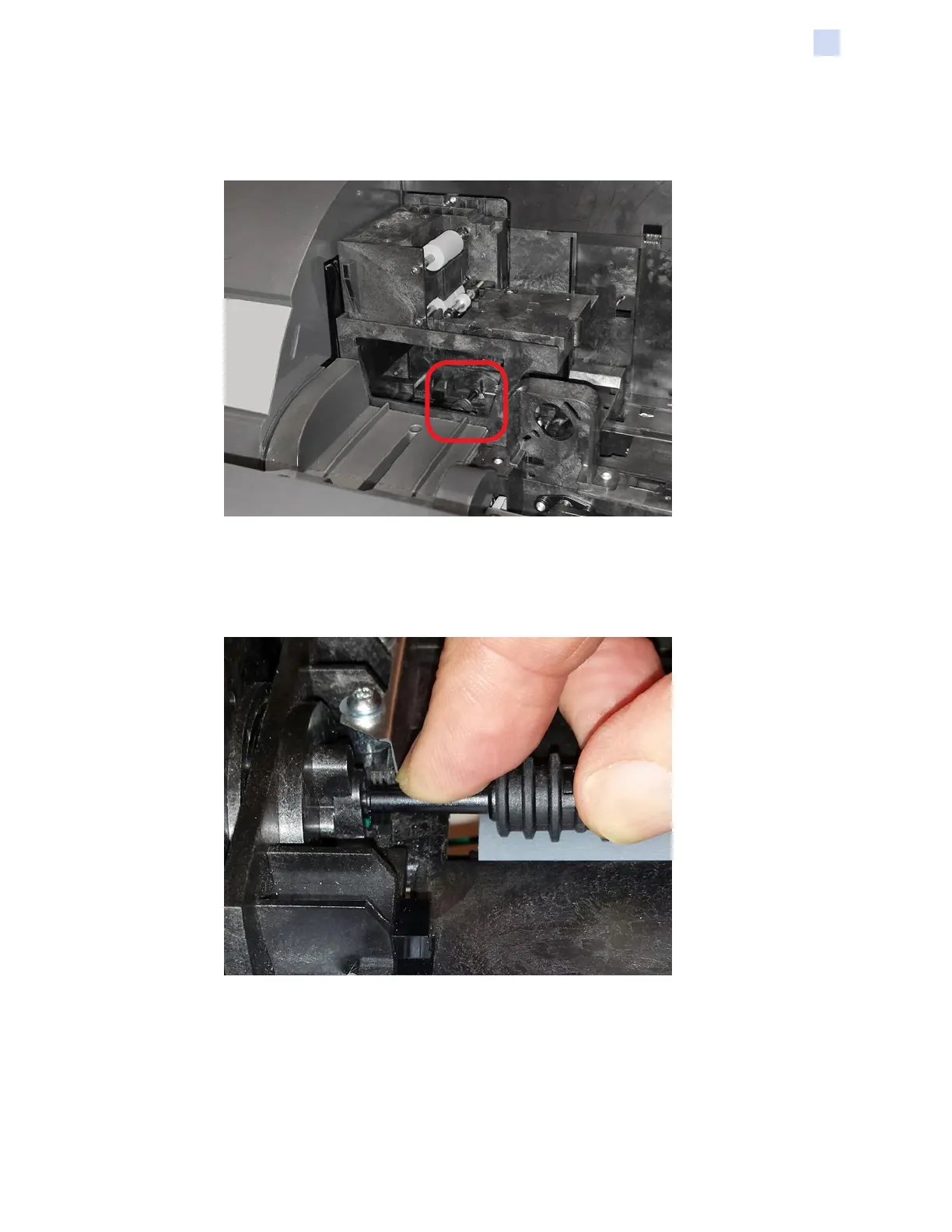

Step 1. Locate the Flexible Roller (circled below).
Step 2. Remove the Flexible Roller.
a. Press the Flexible Roller down and to the right of the Flipper Assembly
to release the roller shaft. Note that the Flexible Roller is shown from the
side for clarity.
b. Pull Flexible Roller up and out of the Flipper Assembly.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
