182 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Options Module
Options Motor

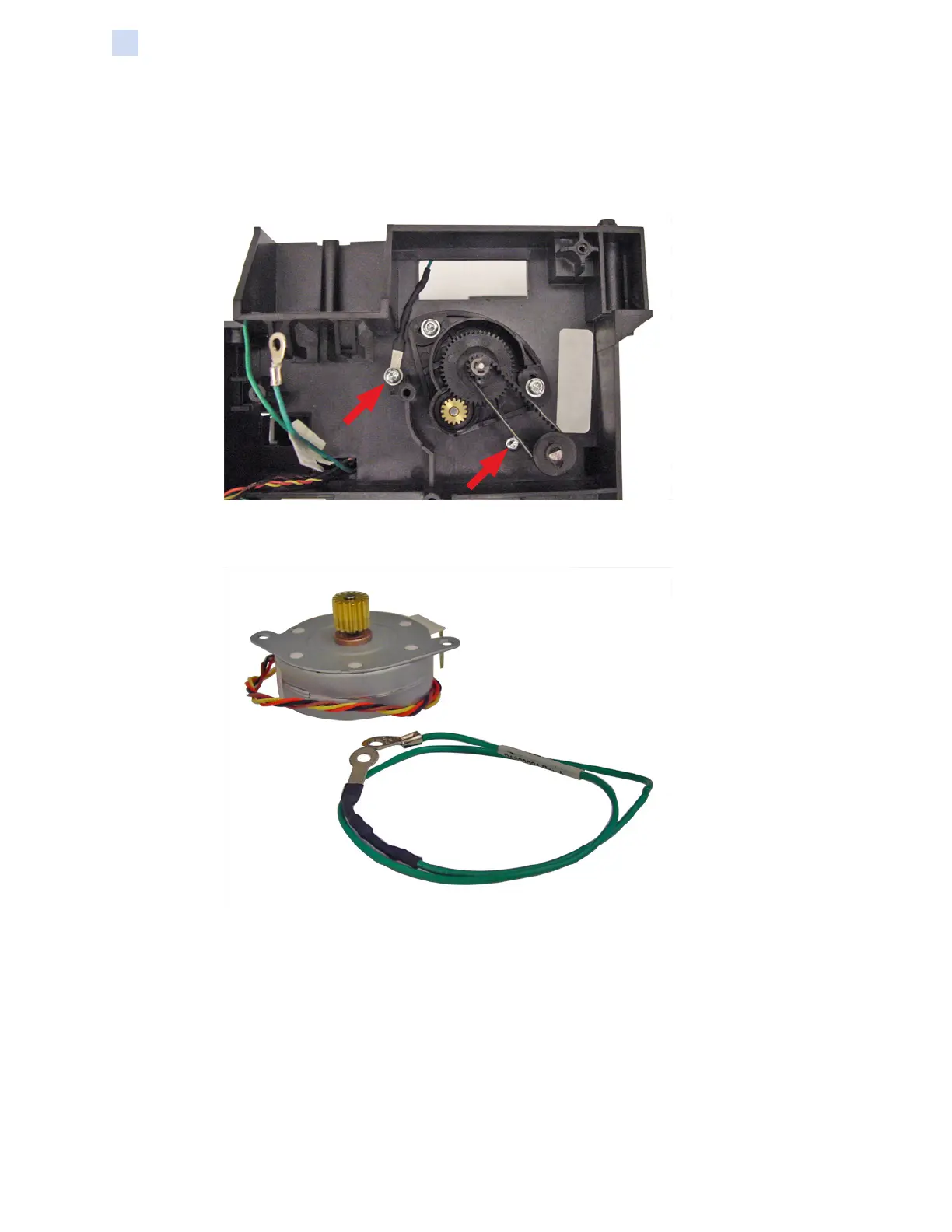

Step 1. With a TORX T10 driver, remove the two screws washers, and nuts holding
the Options Motor in place. Note the green ground wire attached.
Step 2. Remove the Motor and associated green ground wire from the Motor Plate,
and set them aside.
