Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 201
Replacement Procedures for Factory Installed Options
Procedures: MIFARE/Contact Encoder Module

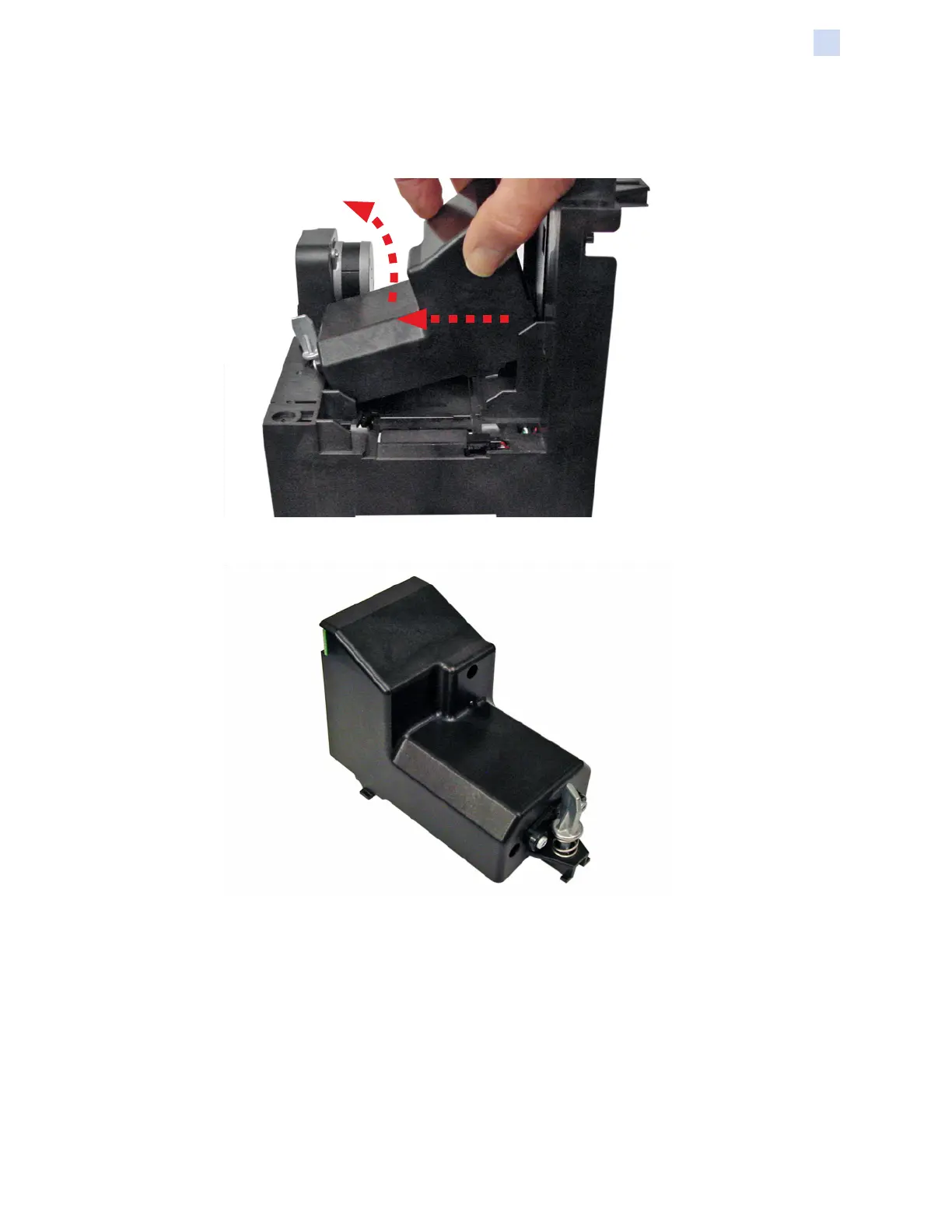

Step 3. Push the Encoder Module forward to disconnect the plug (on the back of the
Encoder Module) from the connector (on the Encoder PCBA); then pull the
Encoder Module up and out of the Frame.
Step 4. Set the Encoder Module aside.
Replacement
Replacement is performed by reversing the removal steps

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
