206 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for Factory Installed Options
Procedures: Contact Station Module

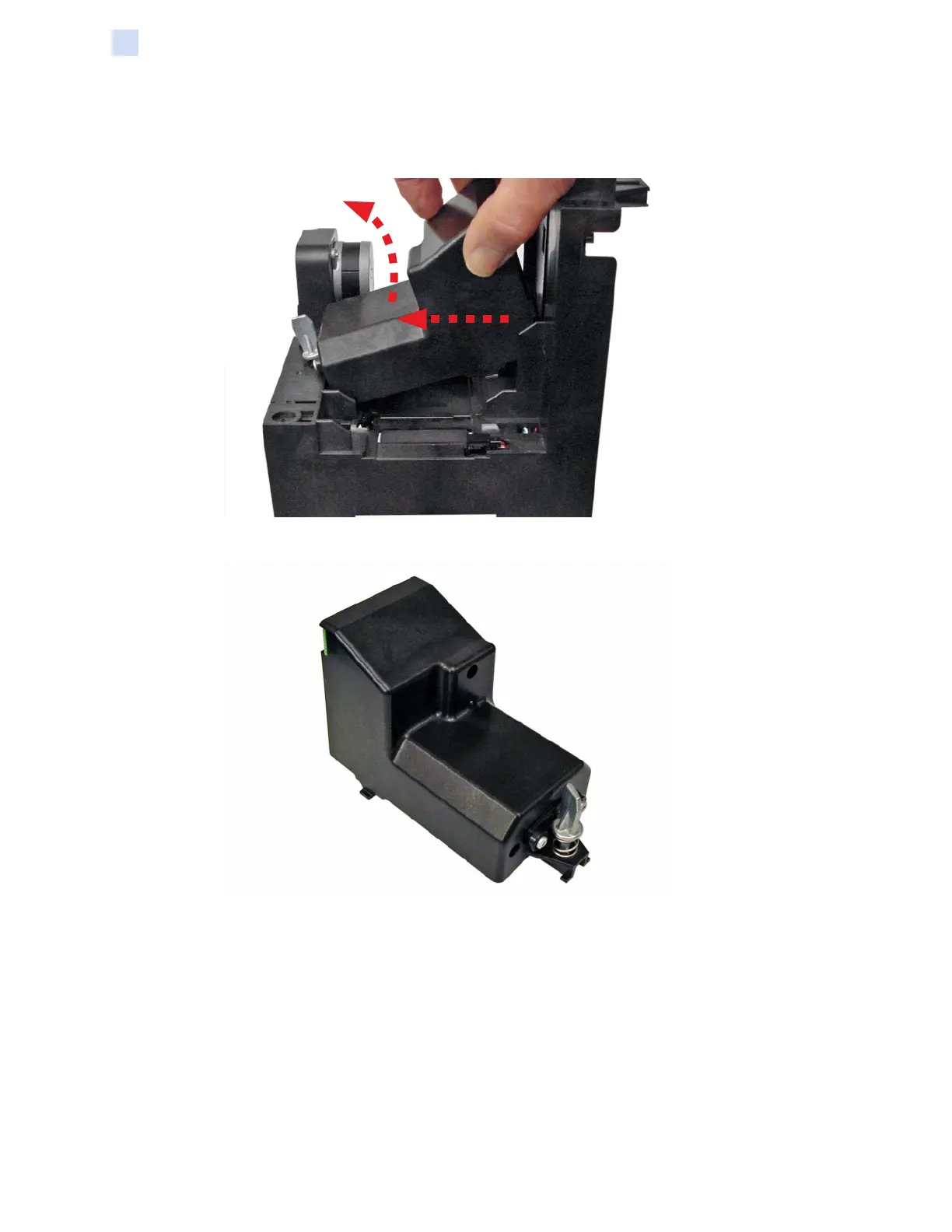

Step 3. Push the contact station module forward to disconnect the plug (on the back
of the encoder module) from the connector (on the encoder PCBA); then pull
the contact station module up and out of the frame.
Step 4. Set the contact station module aside.
Replacement
Replacement is performed by reversing the removal steps
