P1036102-007 ZXP Series 7 Card Printer Service Manual 211
Replacement Procedures for Factory Installed Options
Procedures: Pressure Roller Assembly
Reassembly
Belt Tension Adjustment
For this test, you will need the Gate 507C Sonic Tension Meter.
Step 1. Turn power on (press the red Power button).
Step 2. Select measurement setting No09 (press the 9 button).

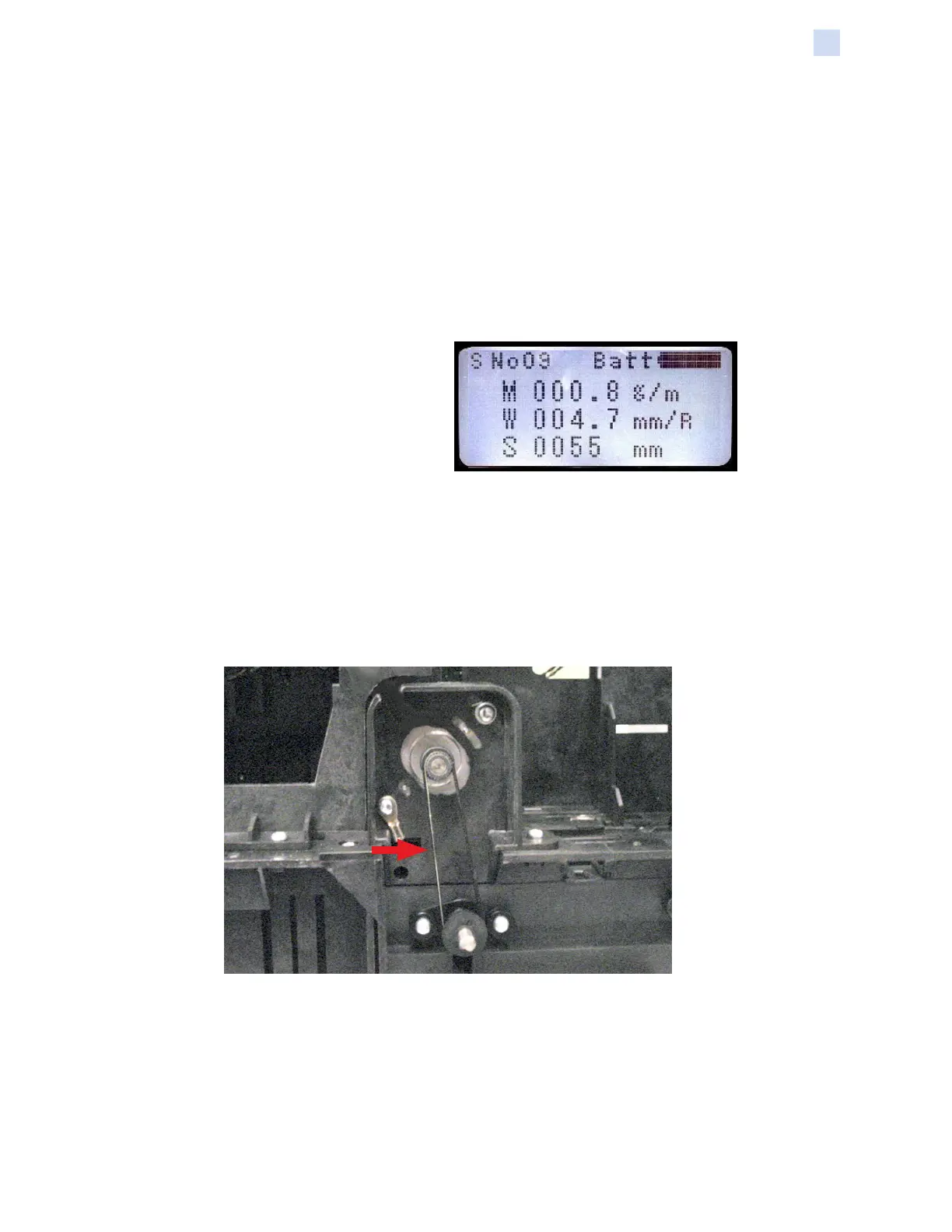

Step 3. Ensure the meter parameters (preset by Zebra Engineering) are set to:
M 000.8 g/m
W 004.7 mm/R
S 0055 mm
Step 4. Set the range to Standard (press and hold the Range button until the range
selections display, then use the UP and DOWN buttons to select the desired
range).
Step 5. Press the green Measure button. The green light below the number pad will
flash indicating that measurement is in progress.
Step 6. Position/point the meter sensor approximately 5 mm from the belt.
Step 7. Tap the belt until you see the belt tension measurement display.
Step 8. The belt tension should measure between 2.2 to 2.8. If not, readjust the
motor (loosen the mounting screws, reposition the motor, and tighten the
mounting screws); and repeat Steps 5 through 8.
Step 9. This completes the calibration procedure.
