212 ZXP Series 7 Card Printer Service Manual P1036102-007

Replacement Procedures for Factory Installed Options

Procedures: Pressure Roller Assembly

Alternate Belt Tension Adjustment

For this adjustment, you will need the Mag Tensioning Spring Tool. Note that his tool is

included with all magnetic encoder upgrade kits..

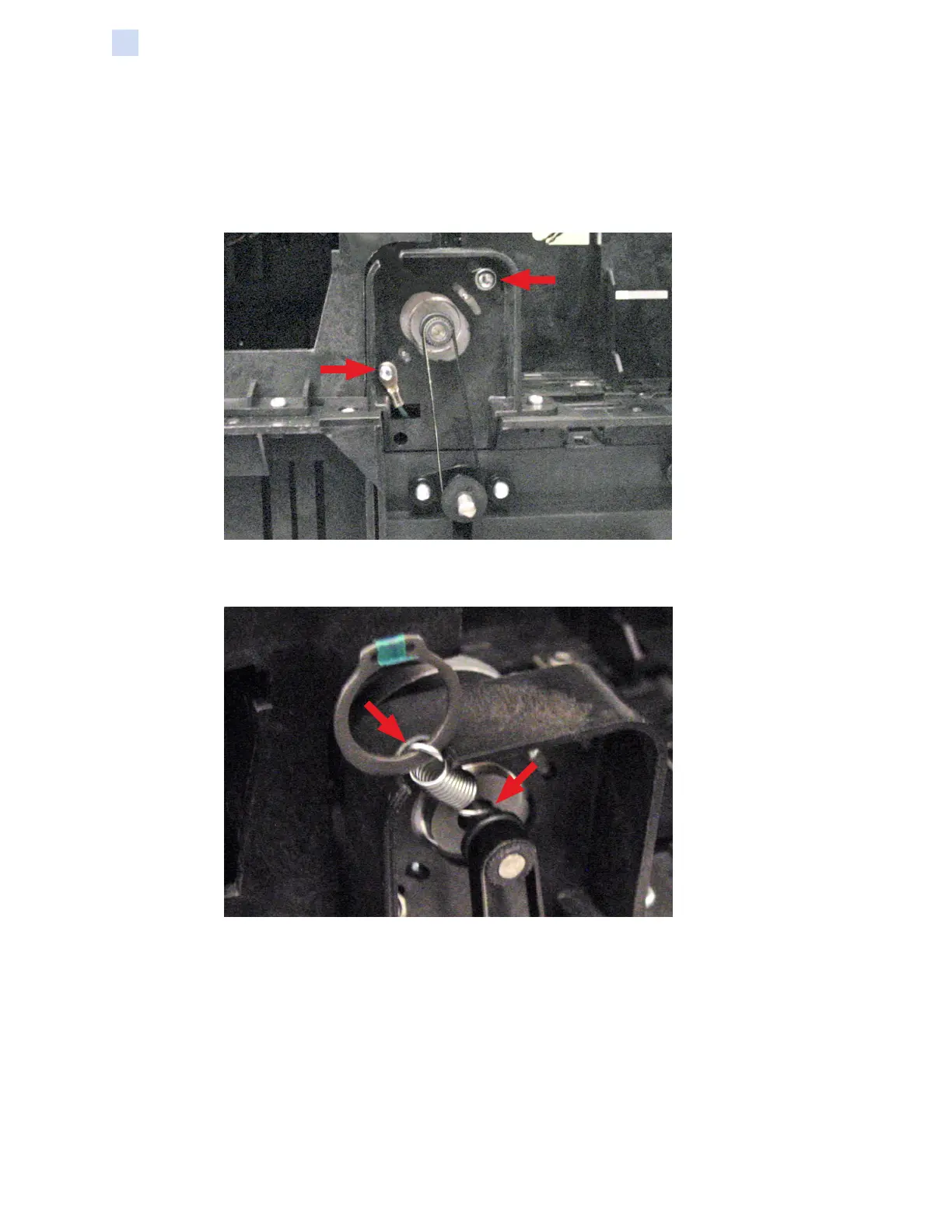

Step 1. Loosen the two motor mounting screws (arrows below).

Step 2. Hook the belt tensioning tool spring around the motor shaft (right arrow

below).

Step 3. Hook the belt tensioning tool ring in the notch (left arrow above).

Step 4. Tighten the two motor mounting screws; see Step 1.

Step 5. Remove the belt tensioning tool.
