Zebra ZXP 7 series

P1036102-007 ZXP Series 7 Card Printer Service Manual 213
Replacement Procedures for Factory Installed Options
Procedures: Pressure Roller Assembly
MAG Head

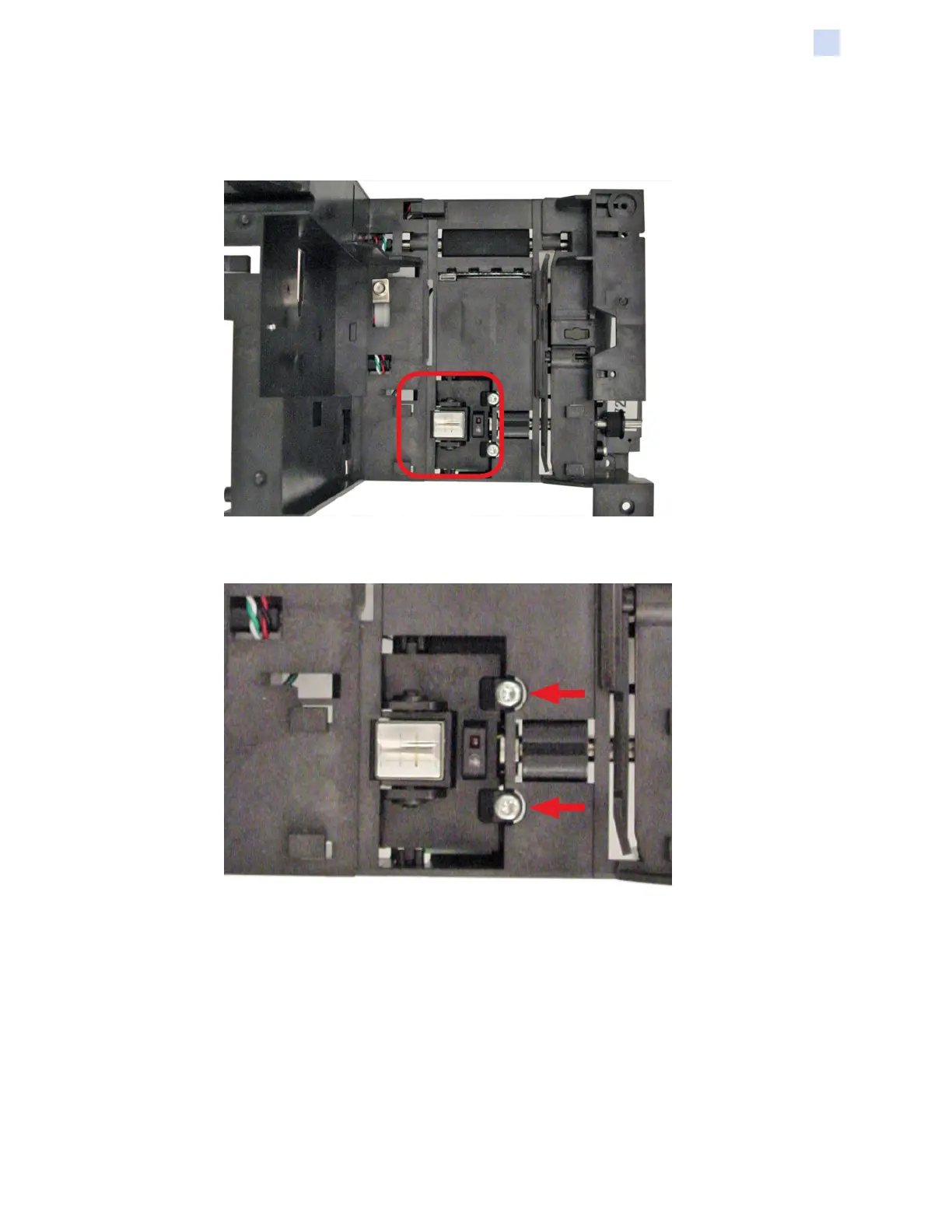

Step 1. Locate the MAG Head (circle below).
Step 2. With a TORX T10 driver, remove the two screws holding the MAG head in
place (arrows below).
