214 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for Factory Installed Options
Procedures: Pressure Roller Assembly

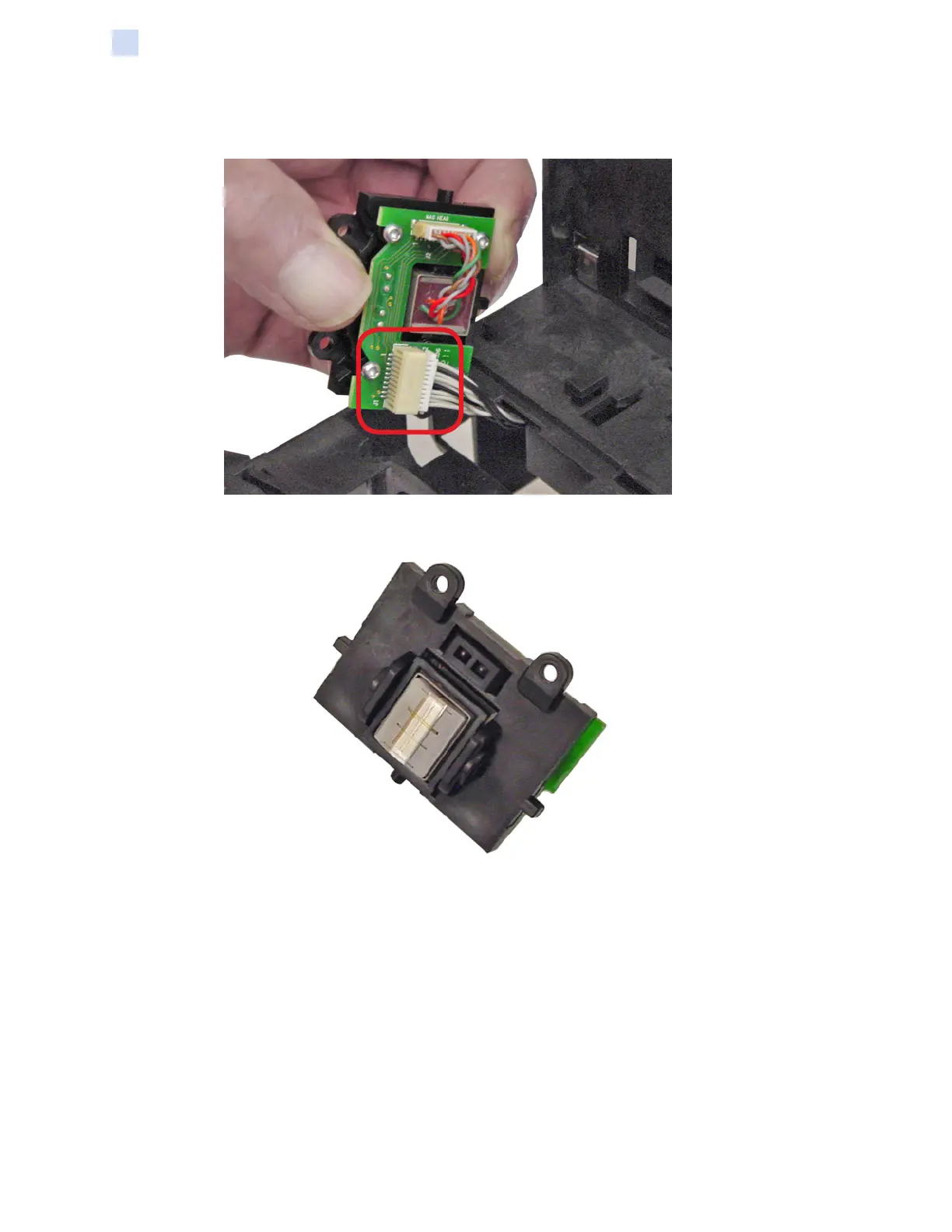

Step 3. Lift the MAG head out of the frame just far enough to access the cable
connector, and disconnect the MAG head plug (circle below).
Step 4. Set the MAG head aside.
