Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 215
Replacement Procedures for Factory Installed Options
Procedures: Pressure Roller Assembly
MAG Control PCBA
Removal

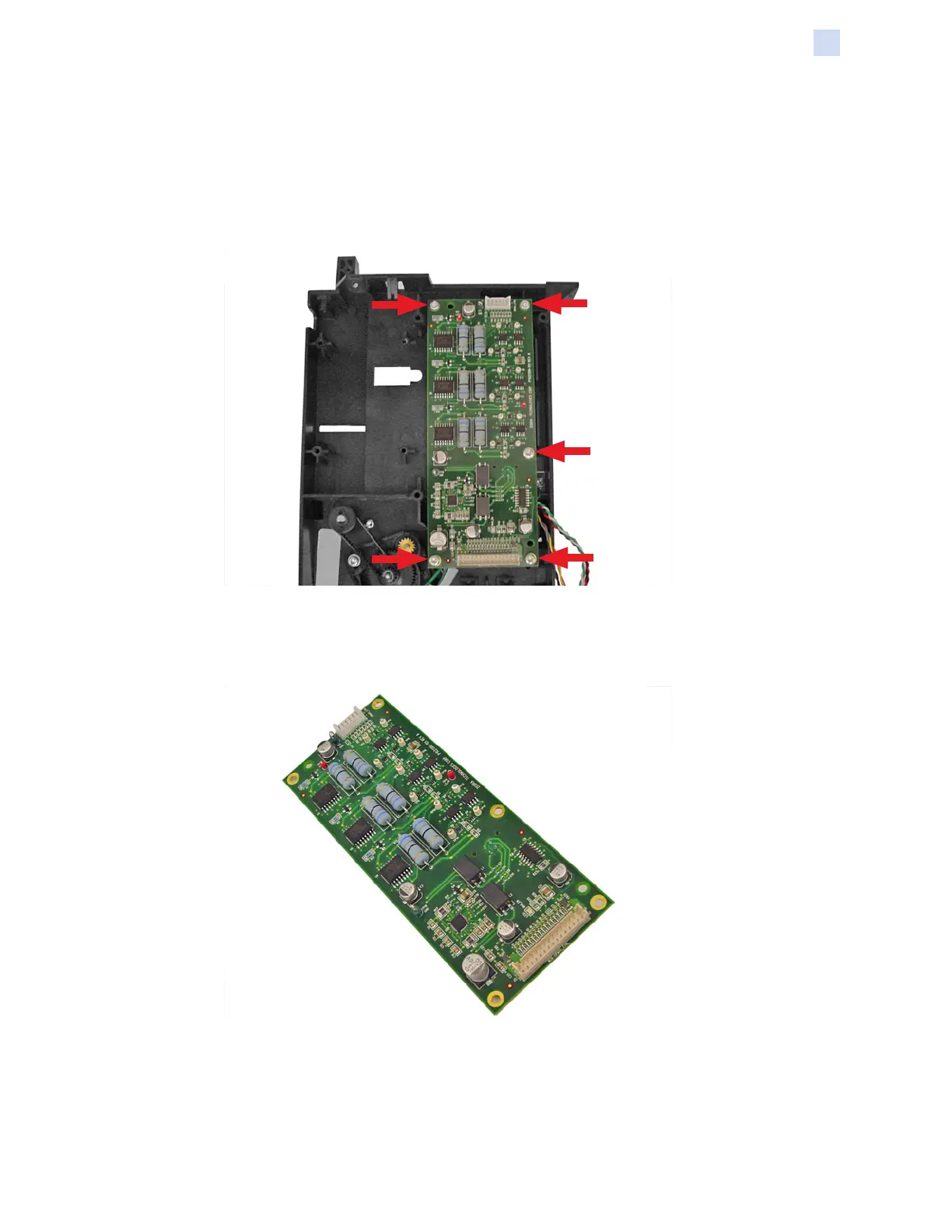

Step 1. From the back of the options module: With a TORX T10 driver, remove the
five screws and washers holding the MAG control PCBA in place.
Step 2. Remove the MAG control PCBA. Note the MAG head cable attached to the
MAG control PCBA.
Step 3. Set the MAG control PCBA aside.
Reassembly
Secure the MAG control PCBA to the options module using the five screws and
washers. Make sure not to over tighten the screws and that the PCBA is allowed some
movement.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
