266 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Cassette Latch Assembly (Top & Bottom)

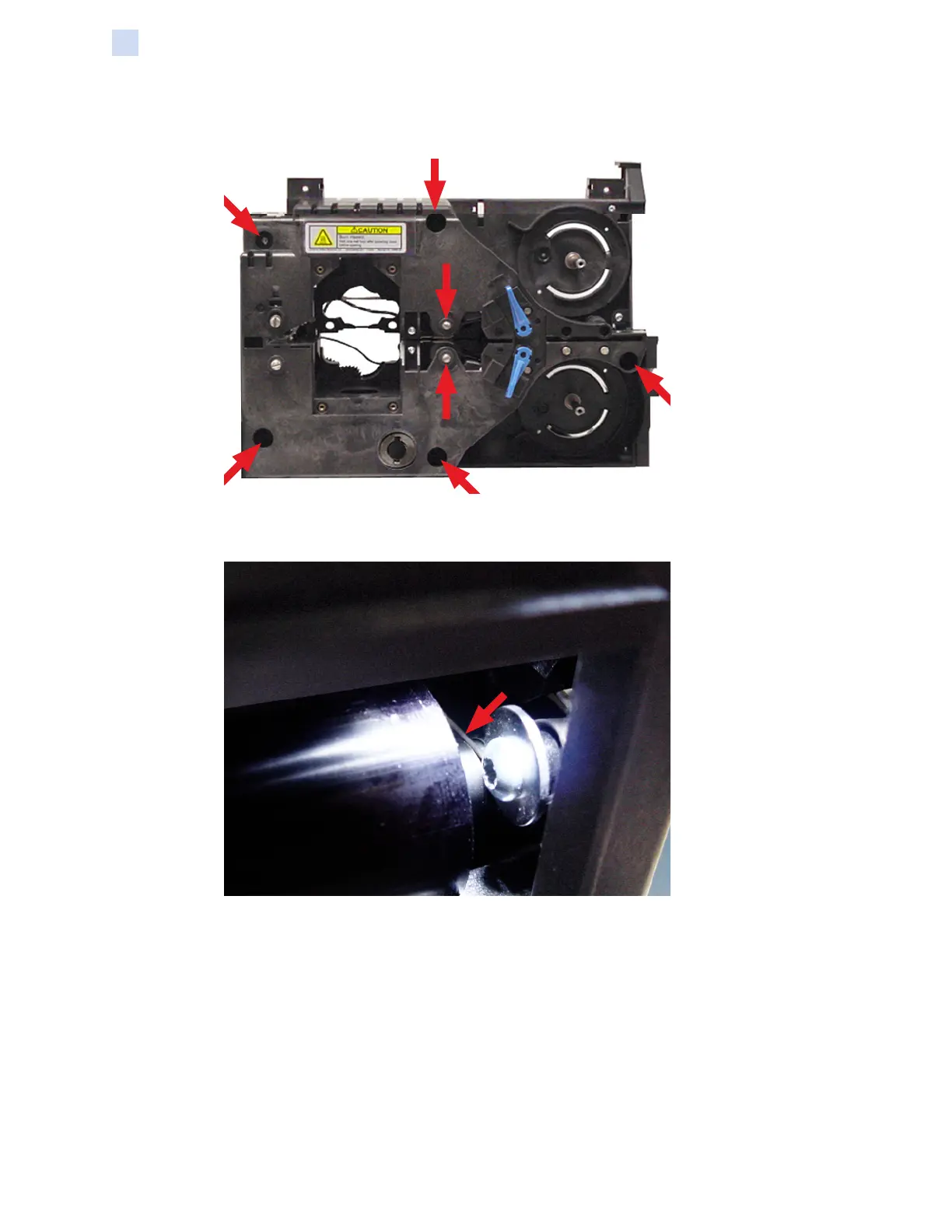

Step 3. With a TORX T10 driver, install the seven mounting screws (indicated below)
that hold the Front Frame in place.
Step 4. Remove the screw installed in Step 1. Ensure that the Torsion Spring is
properly aligned on the Exit Roller Bushing.
