Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 265
Replacement Procedures for the Laminator
Procedures: Cassette Latch Assembly (Top & Bottom)
Replacement

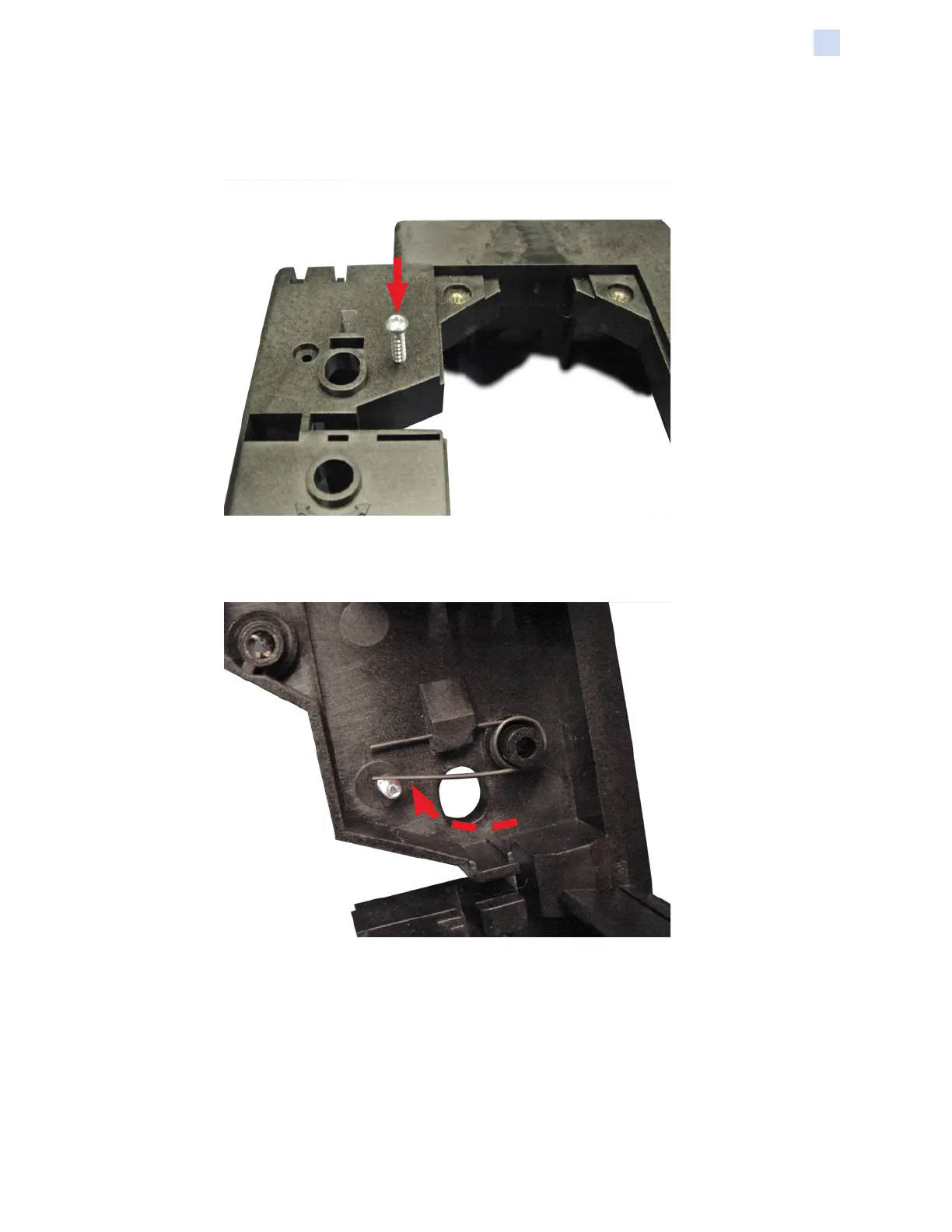

Step 1. Install a screw in the hole in the Front Frame.
Step 2. Position the Torsion Spring against the screw Note that this Torsion Spring
was released when the Front Frame was removed—see “Front Frame” on
page 259.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
