Replacement Procedures for the High-Capacity Output Hopper
Procedures: High-Capacity Output Hopper

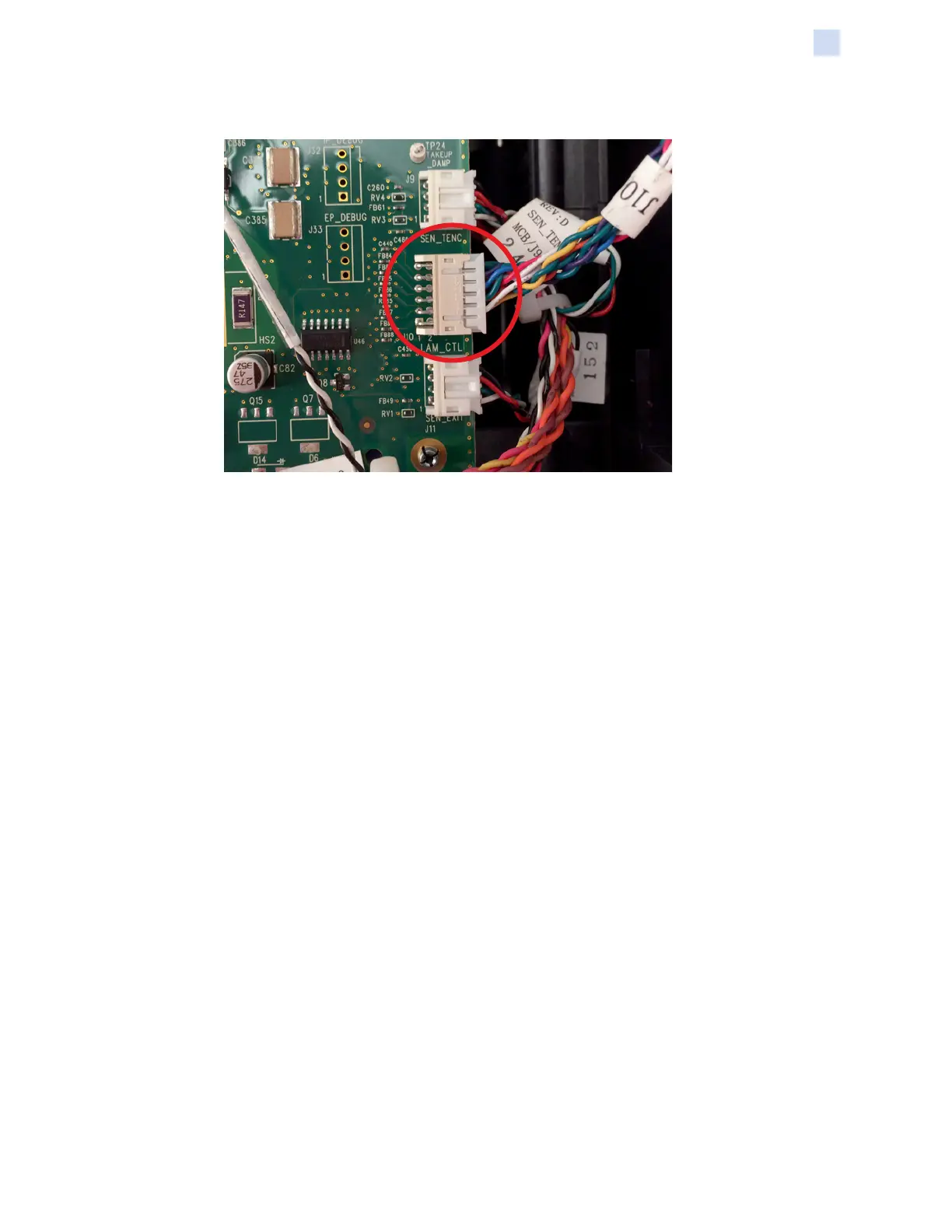

Step 5. Connect the high-capacity output hopper control cable to J10 on the PCBA.
Step 6. Reconnect the reject bin ground wire to the ground post.
Step 7. Install the bottom cover using the eight (8) screws.
Step 8. Install the rear cover using the three (3) screws.
Step 9. Replace the ribbon drawer.
Step 10. Replace the reject bin.
