Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 309
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Left Side Panel

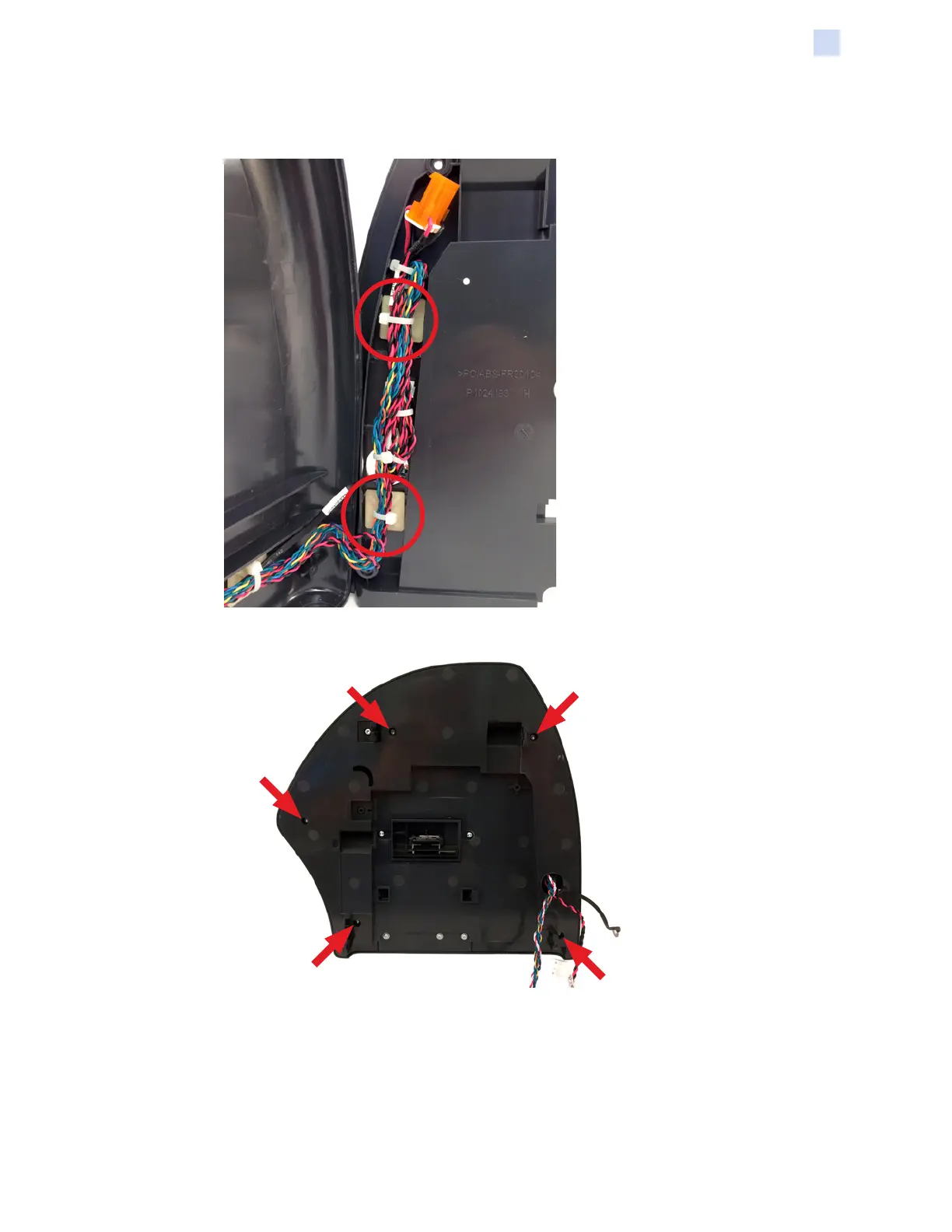

Step 5. Secure the cable bundle to the inside panel with two cable ties and trim the
excess.
Step 6. Secure the inside panel to the outside panel with five (5) screws.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
