Zebra ZXP 7 series Service Manual

312 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Platen Roller
Installation

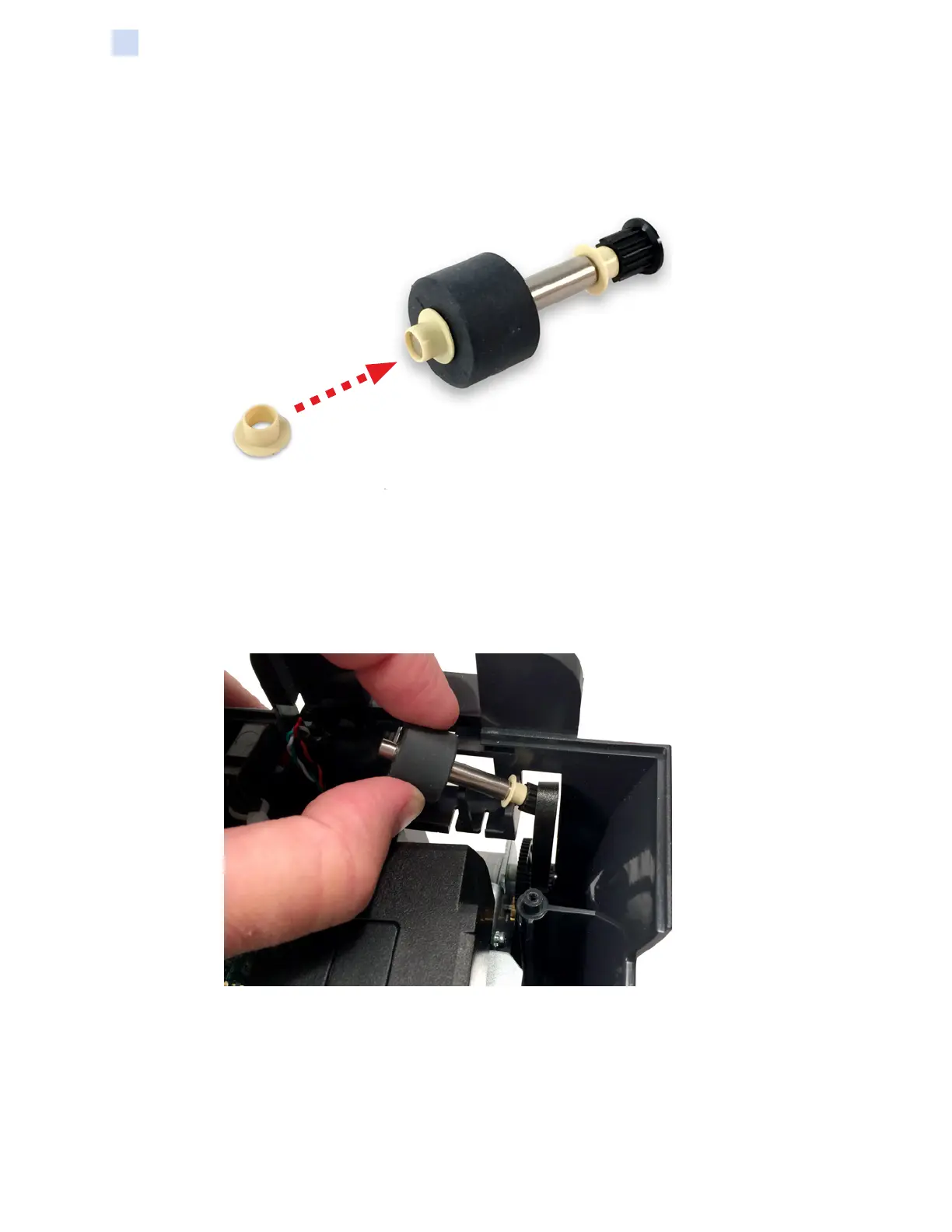

Step 1. Place the roller bearing onto the platen.
Step 2. From the inside of the stacker assembly, place the belt onto the drive motor
gear.
Step 3. While still holding the belt, insert the roller gear into the belt and place it into
the latching mechanism—make sure the nylon spacer is in place opposite
the roller.
Step 4. Secure the base cover and latch assembly to the stacker assembly using the
four (4) screws.
Step 5. Reinstall the left side panel; see “Installation” on page 307.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
