Replacement Procedures for the High-Capacity Output Hopper
Procedures: Pressure Roller

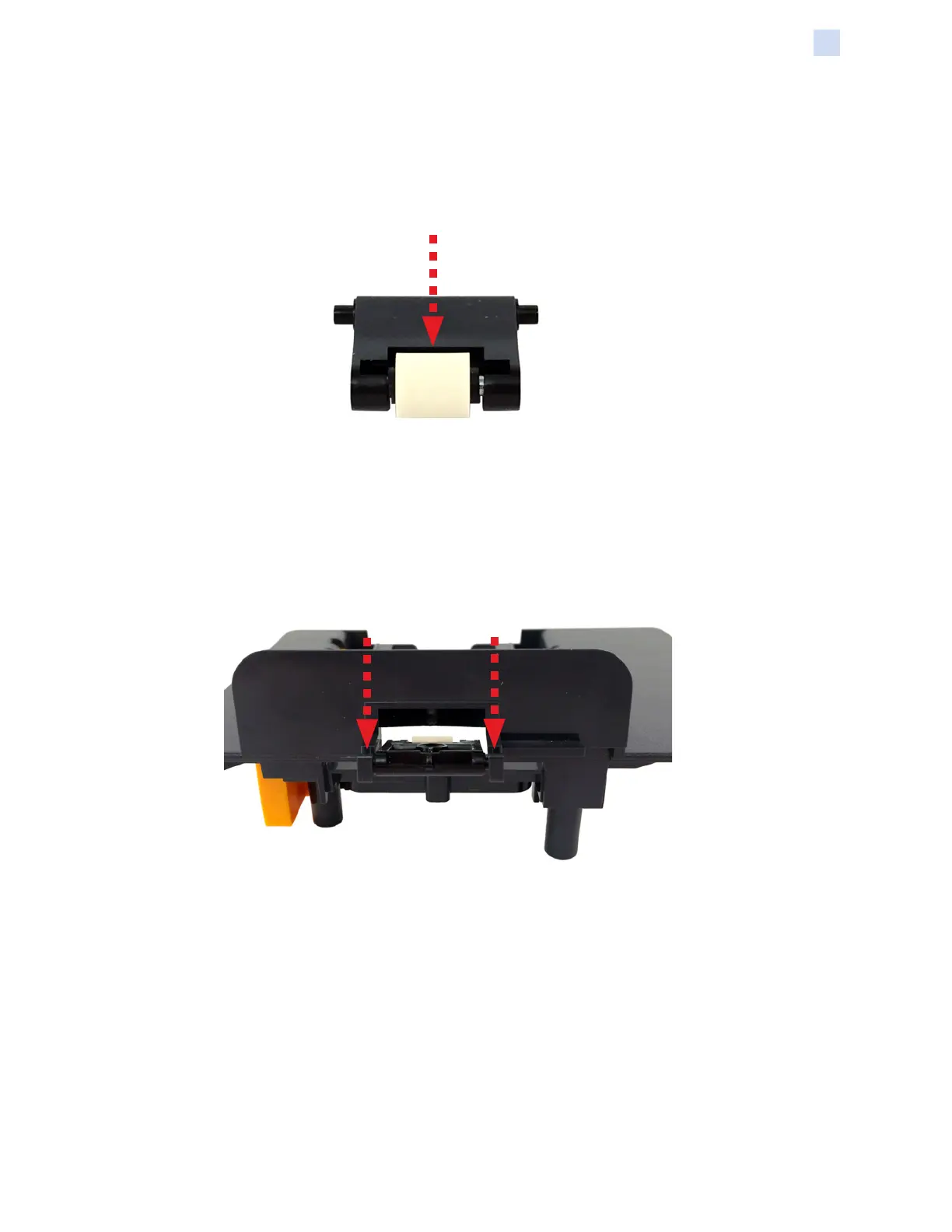

Step 2. Press the roller and dowel into the pressure roller bracket until it clicks into
place.
Step 3. Press the pressure roller assembly into the base cover and latch assembly
until it clicks into place.
Step 4. Insert the pressure spring onto the spring post and into the recessed hole
on the pressure roller bracket.
Step 5. Secure the base cover and latch assembly to the stacker assembly using the
four (4) screws.
Step 6. Reinstall the left side panel; see “Installation” on page 307.
