P1036102-007 ZXP Series 7 Card Printer Service Manual 319
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Sensors
Installation

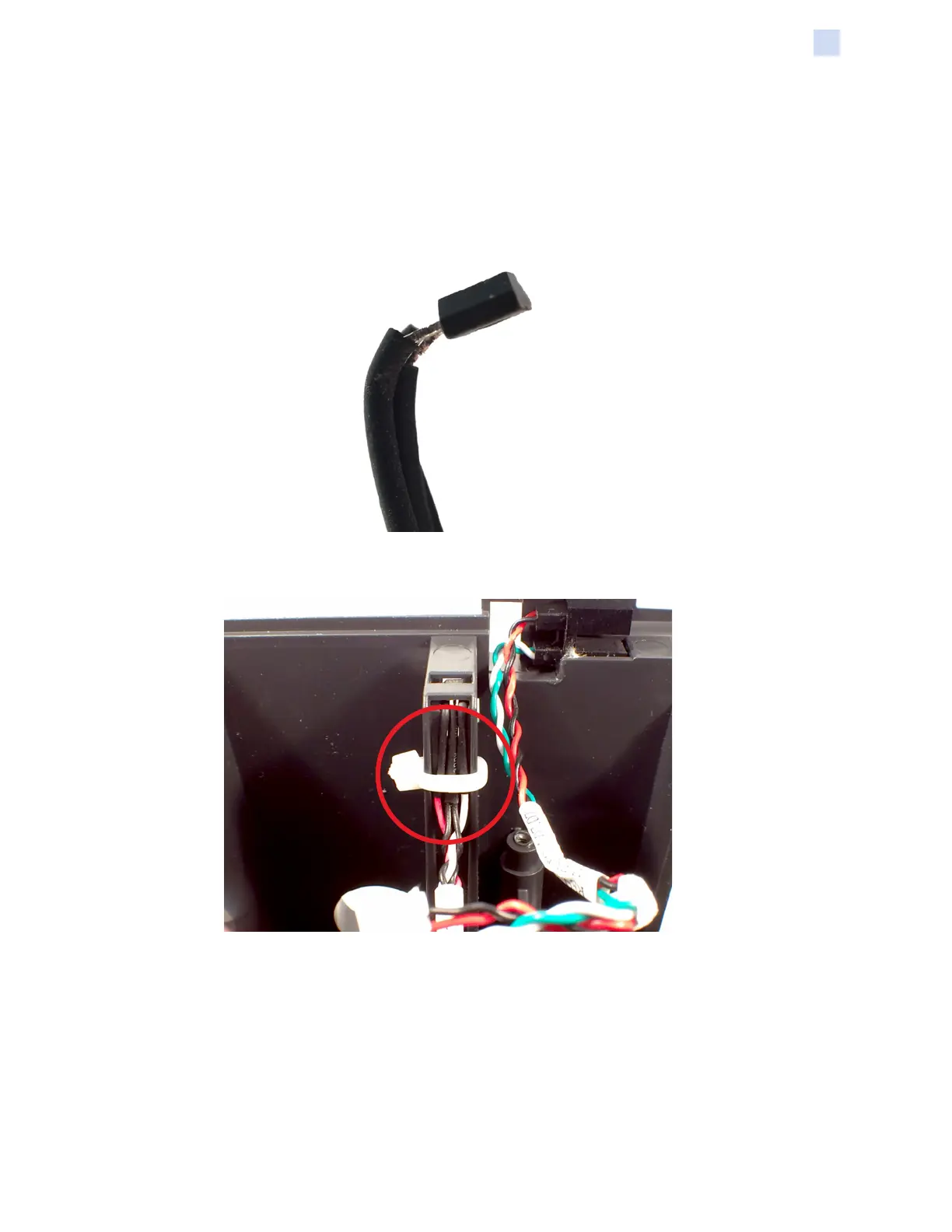

Step 1. Using fingers only, carefully bend the hopper present sensor leads to a 45°
angle with the tapered side of the sensor to the outside of the angle.
Step 2. Insert the hopper present sensor into the base housing and secure with a
cable tie.
Step 3. Connect the hopper present sensor cable to J6 on the PCBA.
