320 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Sensors

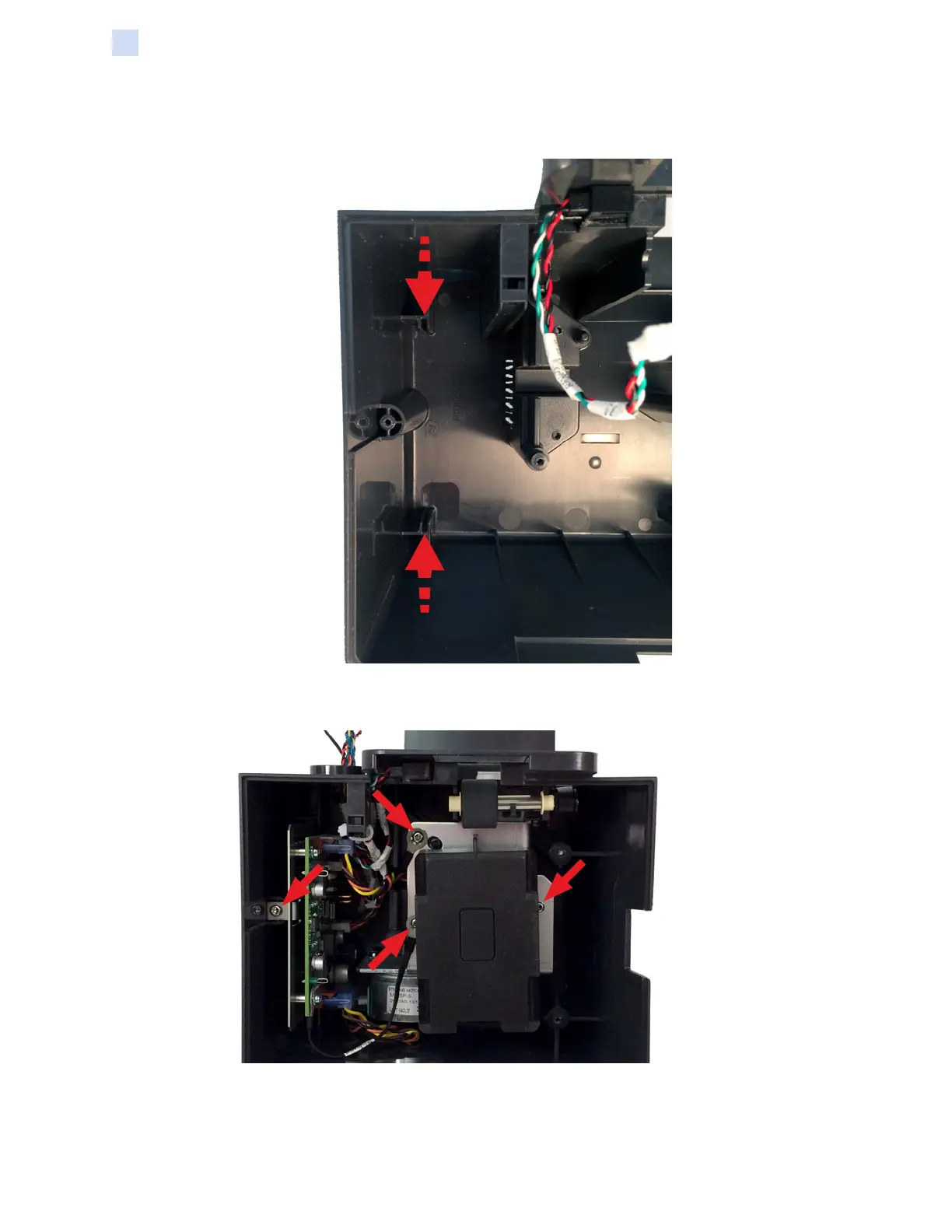

Step 4. Insert the drive motor assembly and the PCBA into the base housing—make
sure the PCBA is inserted into the slots in the base housing.
Step 5. Secure the PCBA to the base housing with a screw, and secure the ground
cables and drive motor assembly to the base housing with three (3) screws.
Step 6. From the inside of the stacker assembly, place the belt onto the drive motor
gear.
