P1036102-007 ZXP Series 7 Card Printer Service Manual 321
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Sensors

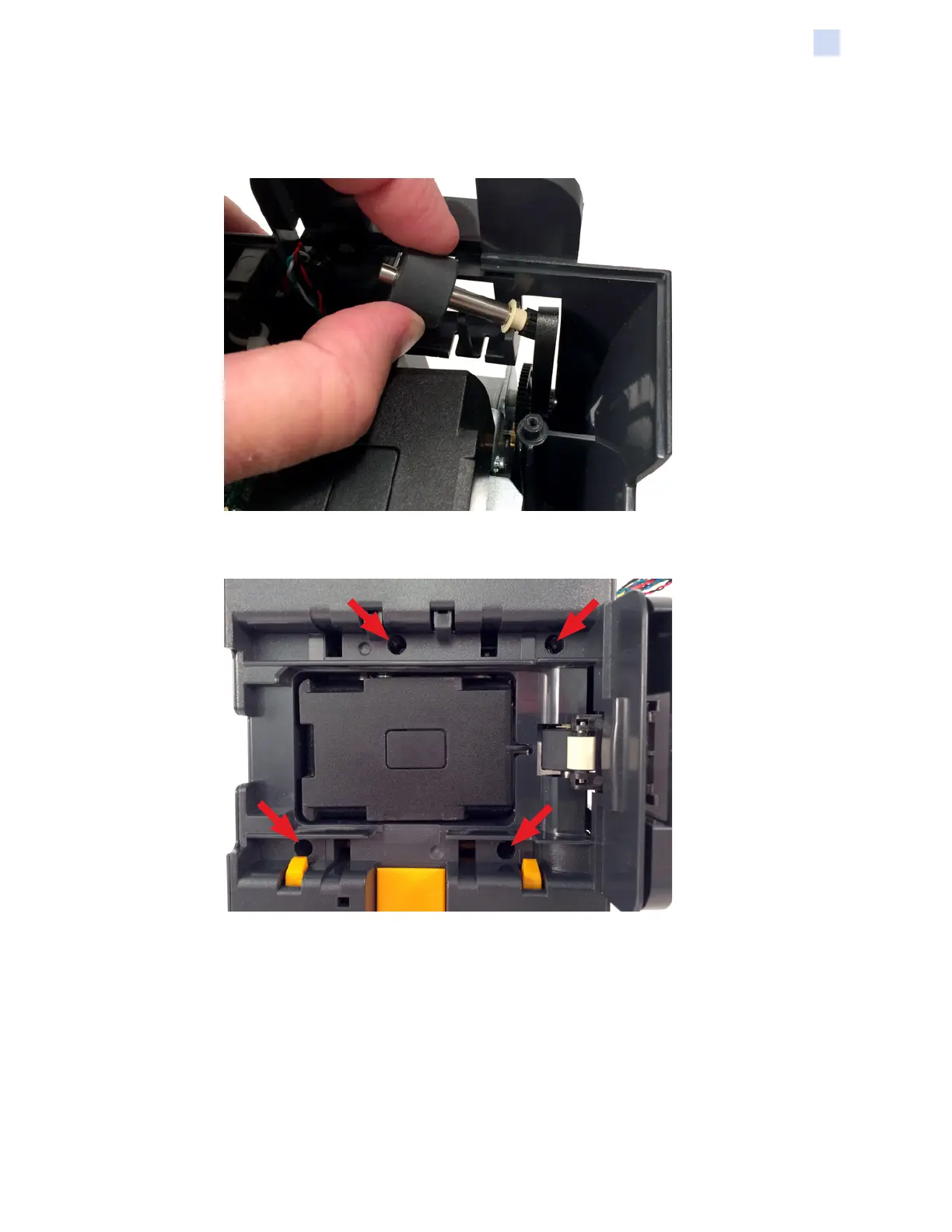

Step 7. While still holding the belt, insert the roller gear into the belt and place it into
the latching mechanism—make sure the nylon spacer is in place opposite
the roller.
Step 8. Secure the base cover and latch assembly to the stacker assembly using the
four (4) screws.
Step 9. Reinstall the left side panel; see “Left Side Panel” on page 304.
