P1036102-007 ZXP Series 7 Card Printer Service Manual 325
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Sensors

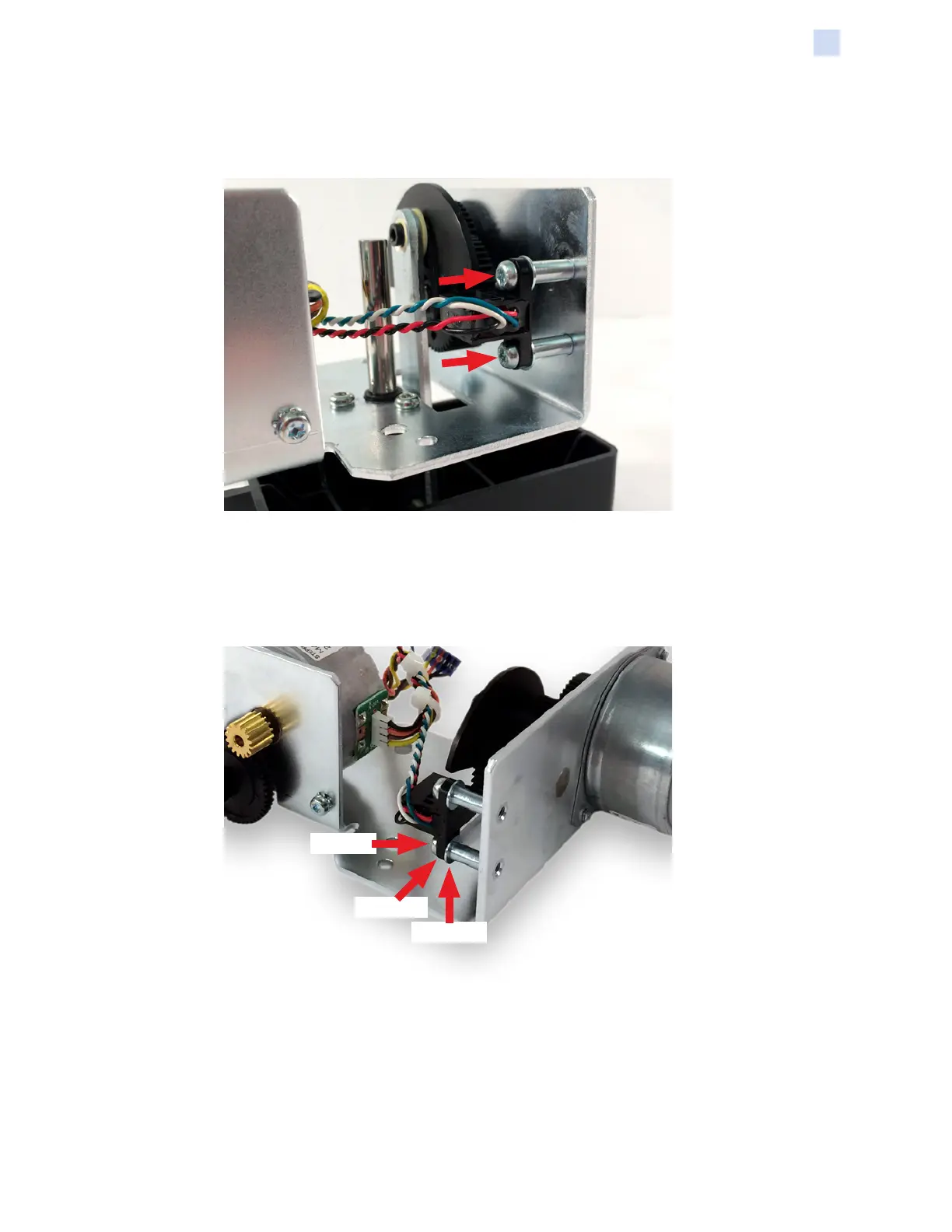

Step 7. Remove the two screws securing the lift cam sensor to the drive assembly
base plate—note the washers between the sensor housing and the
mounting posts.
Installation
Step 1. Secure the lift cam sensor to the drive assembly—be sure to place the
washer between the sensor housing and the mounting posts on the drive
assembly plate.
WASHER
SENSOR
SCREW
