326 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Sensors

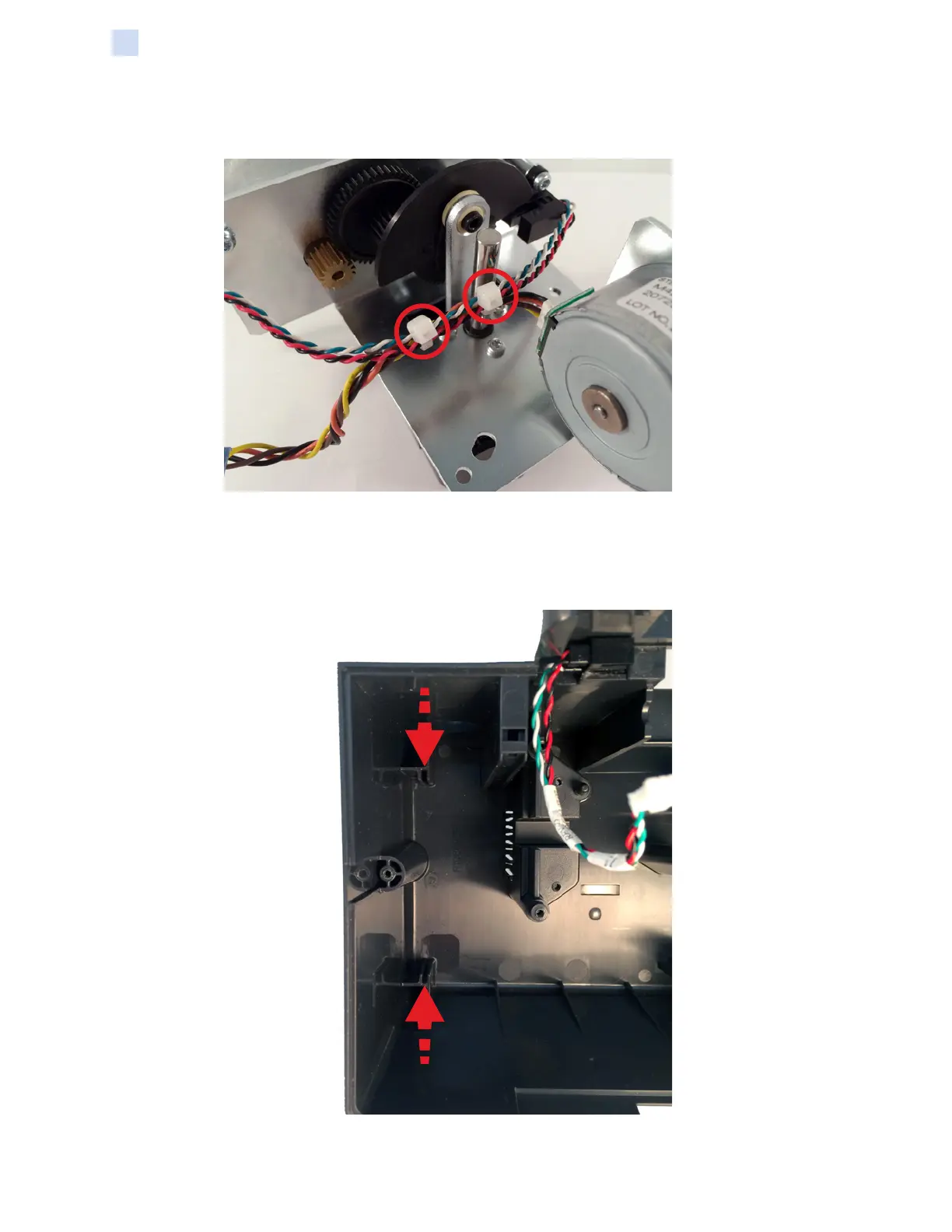

Step 2. Bundle the lift cam sensor cable and the platen motor power cable using
two cable ties.
Step 3. Connect the lift cam sensor to J4 on the PCBA.
Step 4. Insert the drive motor assembly and the PCBA into the base housing—make
sure the PCBA is inserted into the slots in the base housing.
