P1036102-007 ZXP Series 7 Card Printer Service Manual 327
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Sensors

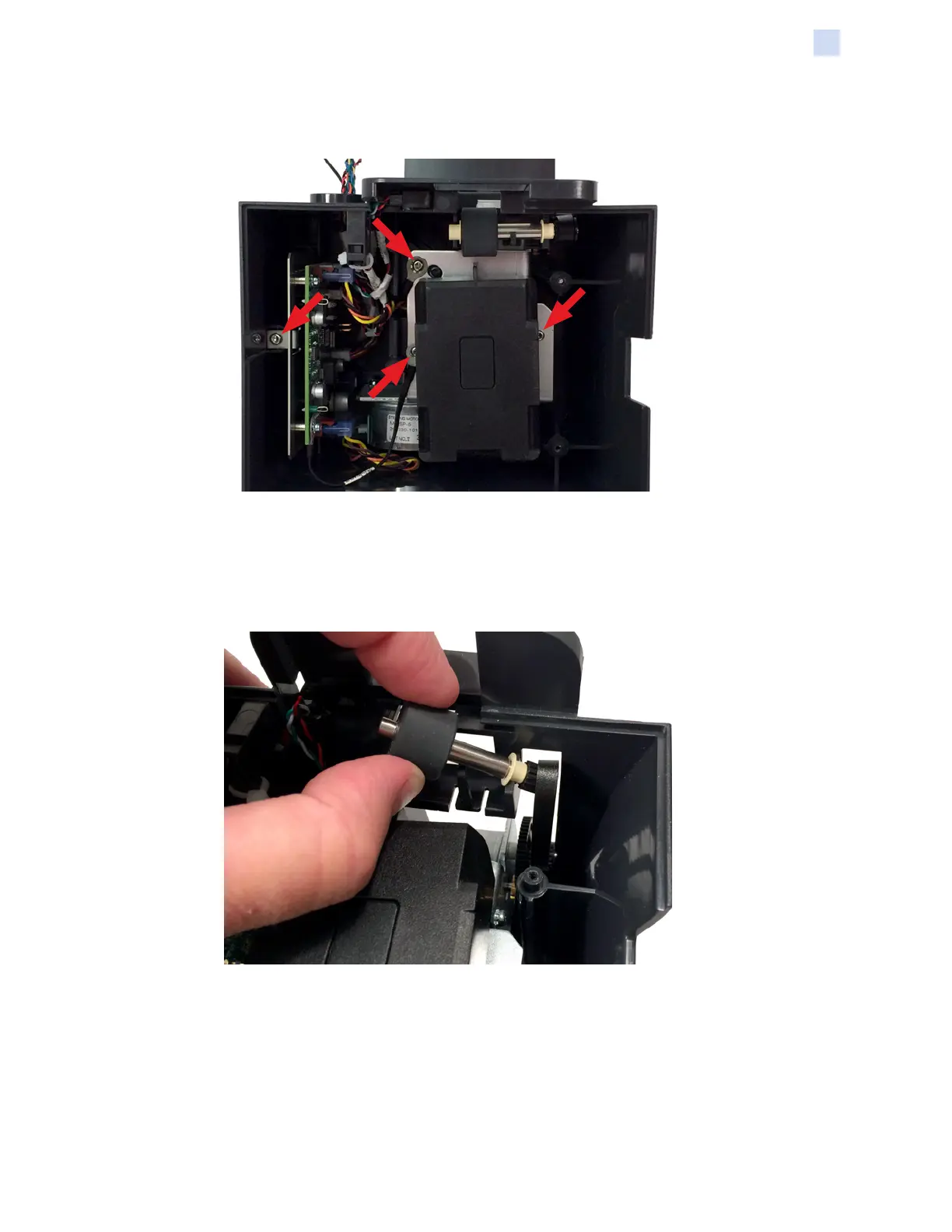

Step 5. Secure the PCBA to the base housing with a screw, and secure the ground
cables and drive motor assembly to the base housing with three (3) screws.
Step 6. From the inside of the stacker assembly, place the belt onto the drive motor
gear.
Step 7. While still holding the belt, insert the roller gear into the belt and place it into
the latching mechanism—make sure the nylon spacer is in place opposite
the roller.
