338 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Drive Assembly

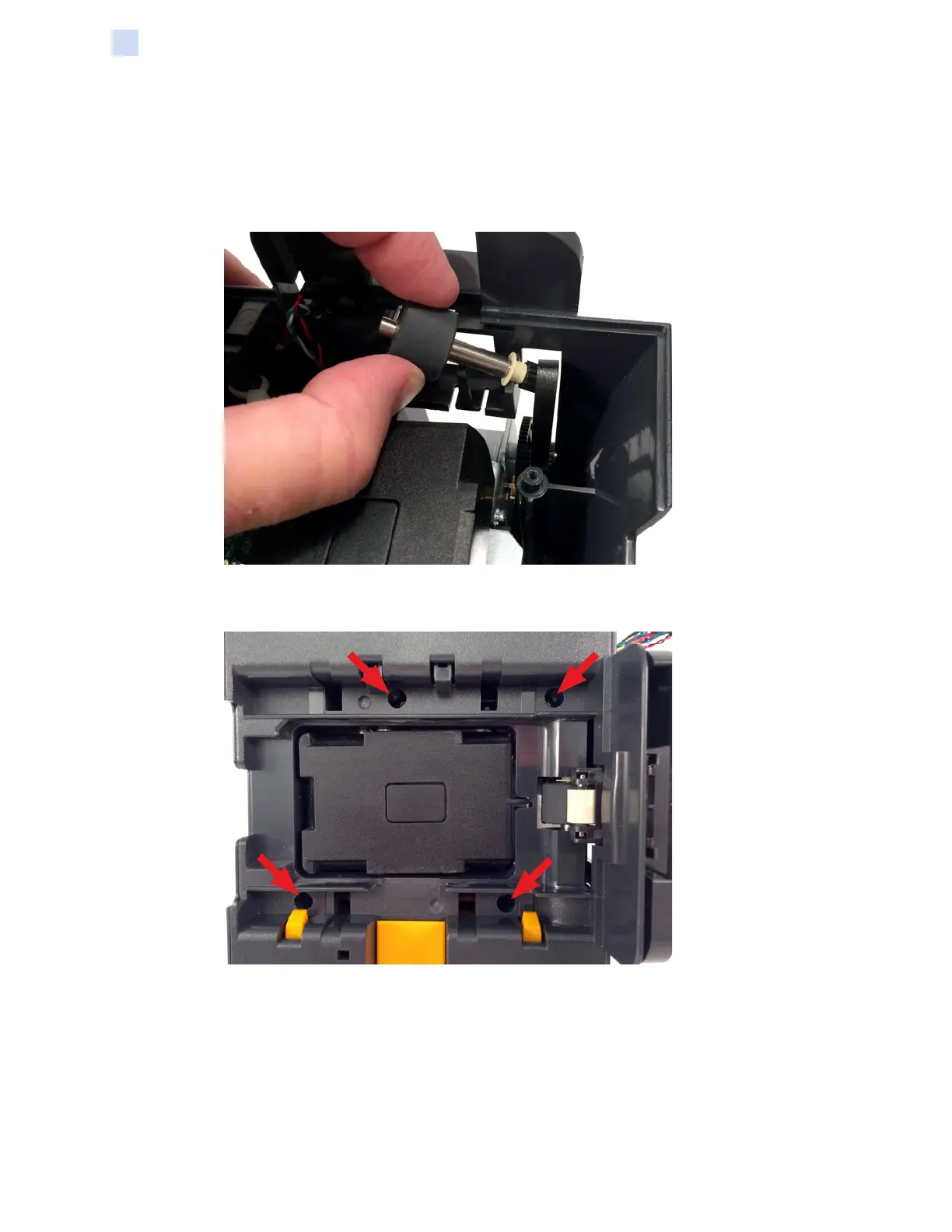

Step 22. From the inside of the stacker assembly, place the belt onto the drive motor
gear.
Step 23. While still holding the belt, insert the roller gear into the belt and place it into
the latching mechanism—make sure the nylon spacer is in place opposite
the roller.
Step 24. Secure the base cover and latch assembly to the stacker assembly using the
four (4) screws.
Step 25. Reinstall the left side panel; see “Left Side Panel” on page 304.
