Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 337
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Drive Assembly

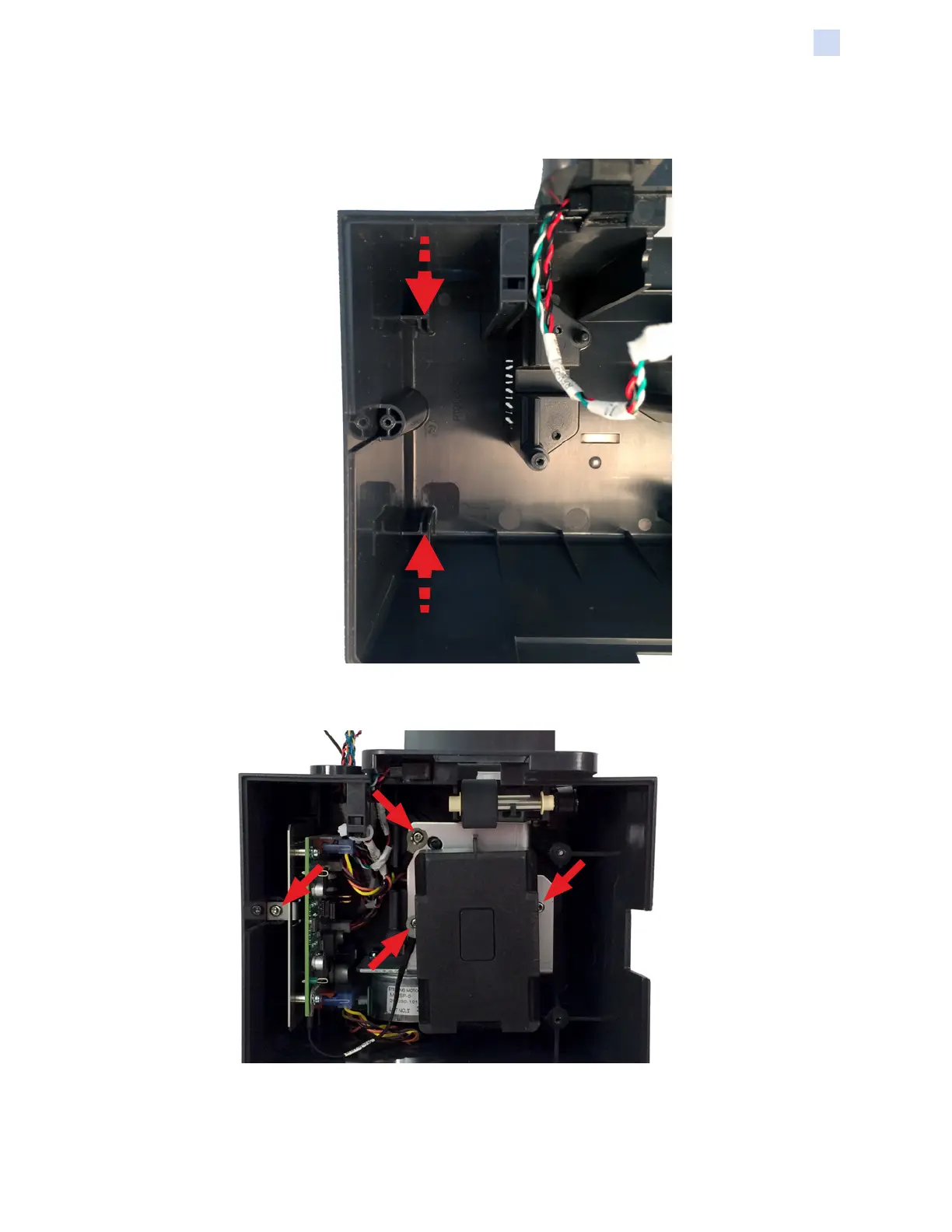

Step 20. Insert the drive motor assembly and the PCBA into the base housing—make
sure the PCBA is inserted into the slots in the base housing.
Step 21. Secure the PCBA to the base housing with a screw, and secure the ground
cables and drive motor assembly to the base housing with three (3) screws.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
